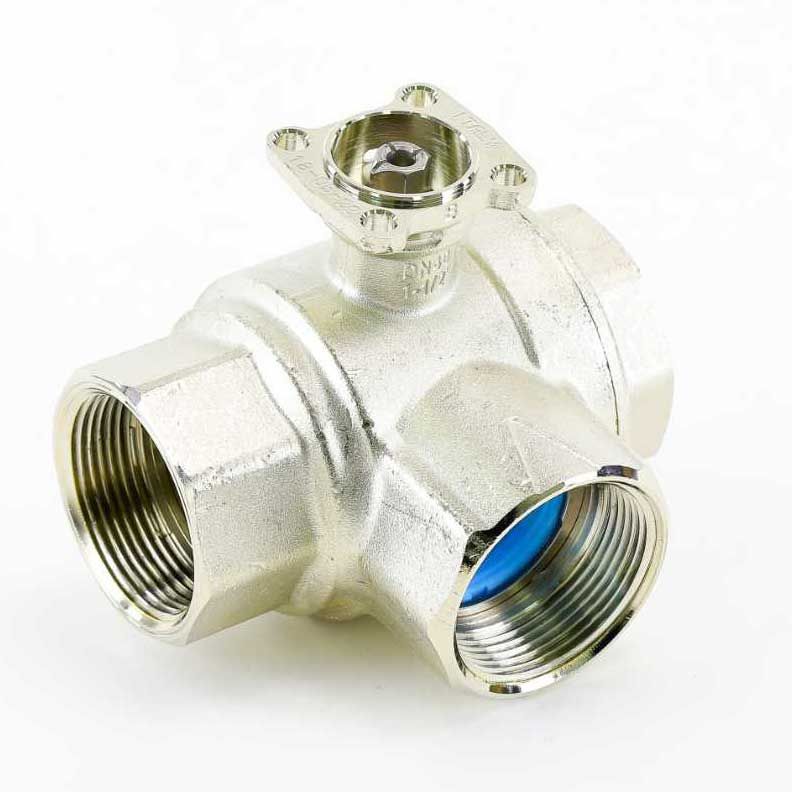

Belimo B338 CCV 3 Way 1-1/2 in NPT 19 Cv

Product Description

The Belimo B338 is a characterized control valve designed for various HVAC applications. It measures one and a half inches in NPT size and offers a flow coefficient of nineteen Cv. This valve features a forged brass body that is nickel plated, alongside a stainless steel ball and stem.

• Ideal for air handling units and fan coil units
• Compatible with hot or chilled water systems with up to sixty percent glycol
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

This valve is suitable for both variable and constant flow hydronic systems. It provides efficient flow control and is ideal for applications needing reliable performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B338

Technical Specifications

• Valve Type: 3-way
• Size: 1.5 inch
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Fluid Compatibility: Chilled or hot water with up to 60% glycol
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Weight: 3.7 lbs
• Dimensions: 4.5 x 3.9 x 3.95 inches
