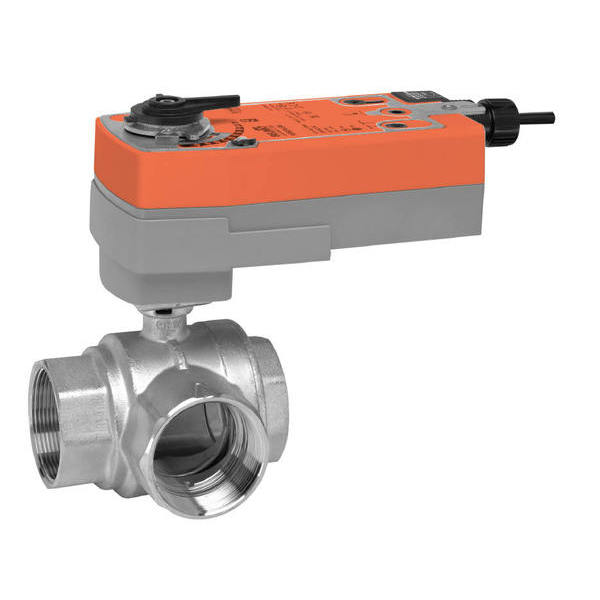

Belimo B331+AFRBUP-S CCV 1.25 3 Way 25 Cv w/ Spg Rtn 24 -240V On/Off

Product Description

Belimo B331+AFRBUP-S is a spring return valve actuator with a flow coefficient of twenty-five. This product operates on a voltage range of twenty-four to two hundred forty volts. Designed for a three-way valve, it is suitable for controlling water flow efficiently.

• Three-way design for versatile application.
• Spring return actuator type for reliable operation.
• Handles chilled or hot water with up to sixty percent glycol.

Product Highlights

It provides good flow control for various HVAC applications, featuring a user-friendly installation and operation.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B331+AFRBUP-S

Technical Specifications

• Valve Size: 1.25 [32]
• Cv: 25
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• End Fitting: Internal thread
• Control Type: On/Off
• Actuator Type: Spring return
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 7 W
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
