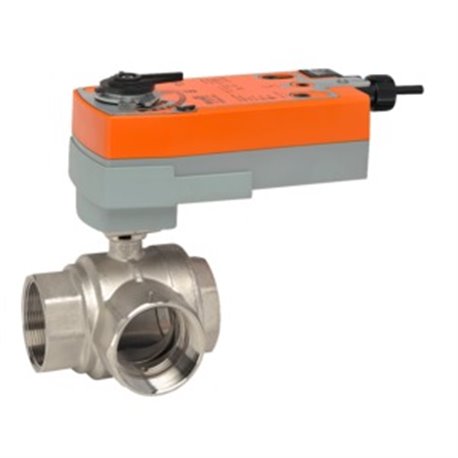

Belimo B330+AFRX24-S CCV 1.25 3 Way 19 Cv w/ Spg Rtn 24V On/Off SW

Product Description

The Belimo B330+AFRX24-S is a control valve actuator designed for precise control in HVAC systems. This unit operates at 24 volts and features a spring return mechanism. It is suitable for three-way applications and can accommodate fluid temperatures ranging from chilled to hot water with a glycol mixture up to sixty percent. It provides a consistent control method for variable flow scenarios.

• Connection type: internal thread
• Auxiliary switches: two SPDT
• Electrical connection: cable

Product Highlights

This actuator is built to ensure reliable operation in various conditions. It includes integrated auxiliary switches that enhance its functionality in automatic control systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B330+AFRX24-S

Technical Specifications

• Valve specifications:
• Angle of Rotation: 90
• Controllable Flow Range: 75B0
• Cv: 19
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1.25 [32]
• Actuator specifications:
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: On/Off
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
