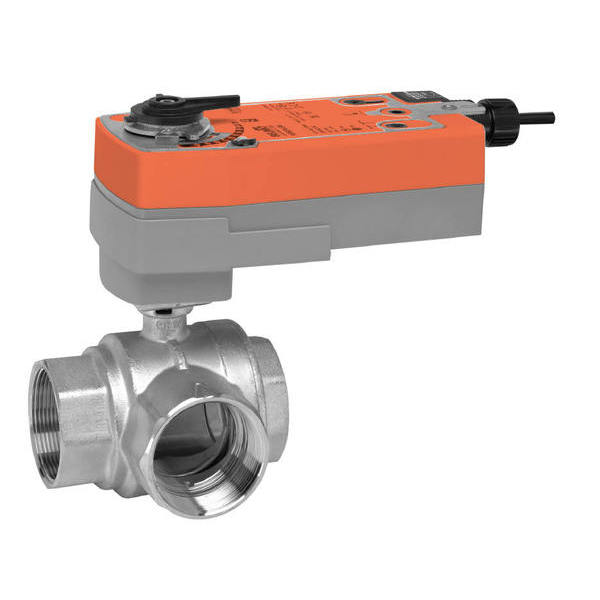

Belimo B330+AFRX24-MFT-S CCV Assembly 3 Way 1-1/4 in NPT 19 Cv

Product Description

The Belimo B330+AFRX24-MFT-S is a character controlled valve designed for efficient flow regulation in HVAC systems. This assembly features a three-way design with a one and one-fourth inch NPT connection and a flow coefficient (Cv) of 19. Its stainless steel ball and stem enhance durability and performance. The valve operates with a direct coupled actuator that supports spring return functionality and runs on 24 VAC power.

• Used in air handling units and fan coil units
• Self-cleaning ball valve design
• Suitable for hydronic systems

Product Highlights

This valve is suitable for both chilled and hot water applications with a maximum temperature of 250°F. Its modulating control allows for precise flow adjustment, making it ideal for both variable and constant flow systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B330+AFRX24-MFT-S

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.5 W running, 3 W holding
• Close-off Pressure: 200 psi
• Flow Characteristic: A-Port equal percentage, B-Port modified for constant common port flow
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: Two 3 ft. 18 GA appliance cables with 1/2 in. conduit connectors
