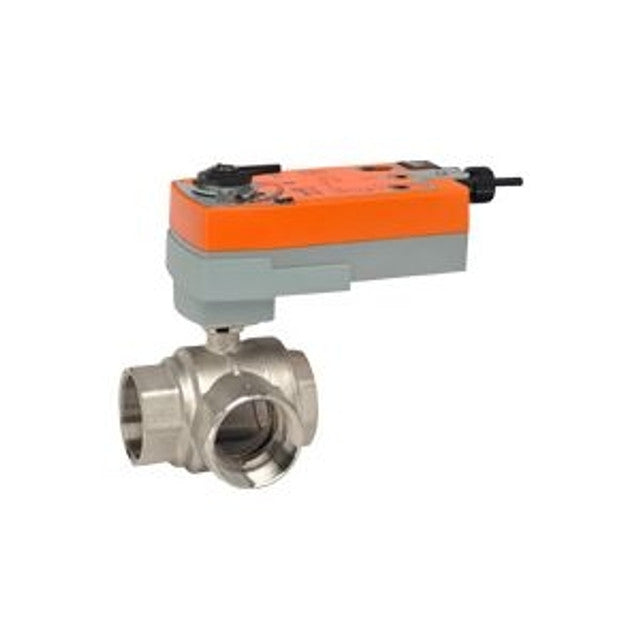

Belimo B330+AFRB24-S CCV Assembly 3 Way 1-1/4 in NPT 19 Cv

Product Description

The Belimo B330+AFRB24-S is a character-controlled valve assembly designed for efficient flow management in HVAC systems. This valve features a robust construction suitable for chilled or hot water applications.

• Spring return actuator for reliable operation.
• Suitable for up to sixty percent glycol mixtures.
• Designed for a torque rating of 180 inch-pounds.

Product Highlights

This valve provides precise control of flow and pressure in HVAC systems. It is designed for easy integration with existing systems and offers long-term reliability.

Product Information

Standard Information

• Brand: Belimo
• Minimum Order Quantity: 1

Technical Specifications

• Valve Size: 1.25 inches
• Cv: 19
• Pattern: 3-way
• Fluid: Chilled or hot water with up to 60% glycol
• Angle of Rotation: 90 degrees
• Auxiliary Switches: 2 x SPDT
• Electrical Connection: Two 3 ft. appliance cables with 1/2 inch conduit connector
• Power Consumption: 5 W running, 2.5 W holding
• Operating Conditions: -22 F to 122 F
• Degree of Protection: IP54 NEMA 2 UL enclosure
