Belimo B330 CCV 3 Way 1-1/4 in NPT 19 Cv

Product Description

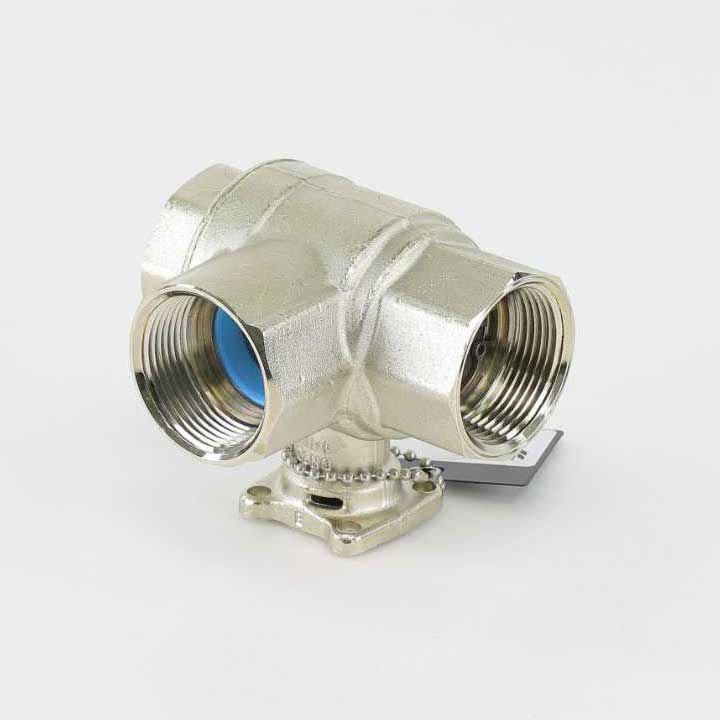

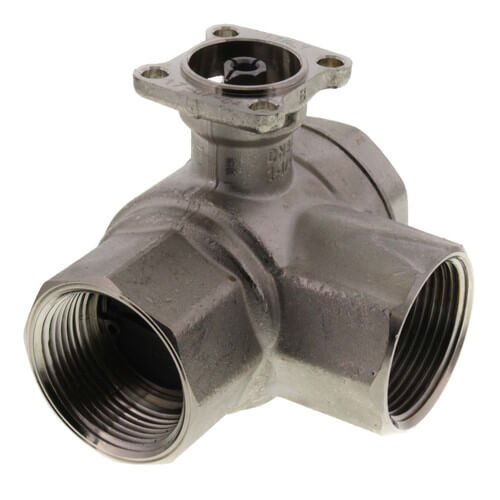

The Belimo B330 is a characterized control valve designed for HVAC applications. This 3-way valve with an NPT connection measures 1-1/4 inches and offers a flow coefficient of 19 Cv. It is suitable for chilled or hot water systems that may include up to sixty percent glycol.

• Constructed from nickel plated forged brass with a stainless steel ball and stem
• Ideal for use in air handling units, fan coil units, and various hydronic systems
• Operates effectively within temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

This valve is specifically built to ensure stable temperature control and efficiency in heating and cooling operations.

Product Information

Standard Information

• Type: 3 Way Valve
• Material: Forged Brass Body with Stainless Steel Trim

Technical Specifications

• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Flow
• Close-Off Pressure: 200 psi
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Applications: Air Handling Units, Fan Coil Units, Hydronic Systems
