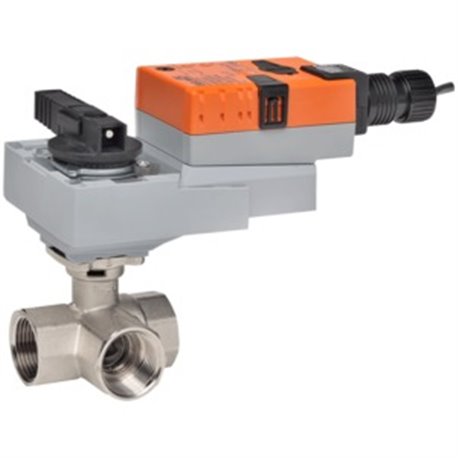

Belimo B329+ARX24-SR CCV Assembly 3 Way 1-1/4 in NPT 10 Cv

Product Description

The Belimo B329+ARX24-SR is a characterized control valve designed for efficient flow management. This three-way valve features a one and one-quarter inch NPT connection and is rated at ten Cv, which allows for optimal performance in heating and cooling systems. The valve is typically used in air handling units on heating or cooling coils and fan coil units. It is suitable in hydronic systems with variable or constant flow.

• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Ball valve design offers self-cleaning and zero leakage.
• Electrical connection includes an eighteen-gauge plenum rated cable.

Product Highlights

This valve is built with a forged brass and nickel plated brass body, ensuring reliability and durability over time.

Product Information

Standard Information

• Brand: Belimo
• Model Number: B329+ARX24-SR

Technical Specifications

• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Power Consumption: 2.5 W Running, 0.4 W Holding
• Degree of Protection: IP54 NEMA 2
• Trim Material: Stainless Steel
• Valve Size: 1.25 inches
• Actuator Type: Non-fail-safe
