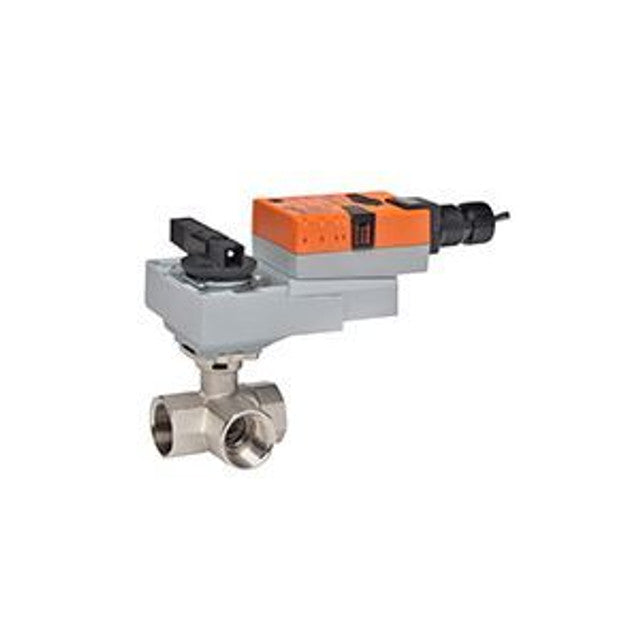

Belimo B329 ARX24-MFT CCV Assembly 3 Way 1-1/4 in NPT 10 Cv

Product Description

The Belimo B329 ARX24-MFT is a characterized control valve designed for HVAC systems. It features a three-way valve capable of handling both chilled and hot water applications. This valve is typically installed in air handling units on heating or cooling coils, as well as fan coil units.

• Suitable for hydronic systems with variable or constant flow
• Ball valve design ensures self-cleaning and zero leakage
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

This valve provides modulating control using a direct-coupled actuator and is built with multi-function technology. It is designed to enhance efficiency in heating and cooling setups.

Product Information

Standard Information

• Brand: Belimo
• MPN: B329 ARX24-MFT

Technical Specifications

• Valve Size: 1.25 inches
• Cv: 10
• Flow Characteristics: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Electrical Connection: 18 GA Plenum Rated Cable with 1/2 inch Conduit Connector
• Close-Off Pressure: two hundred psi
• Power Consumption: 3.5 W Running, 1.3 W Holding
• Operating Conditions: -22 degrees Fahrenheit to 122 degrees Fahrenheit
• Trim Material: Stainless Steel
