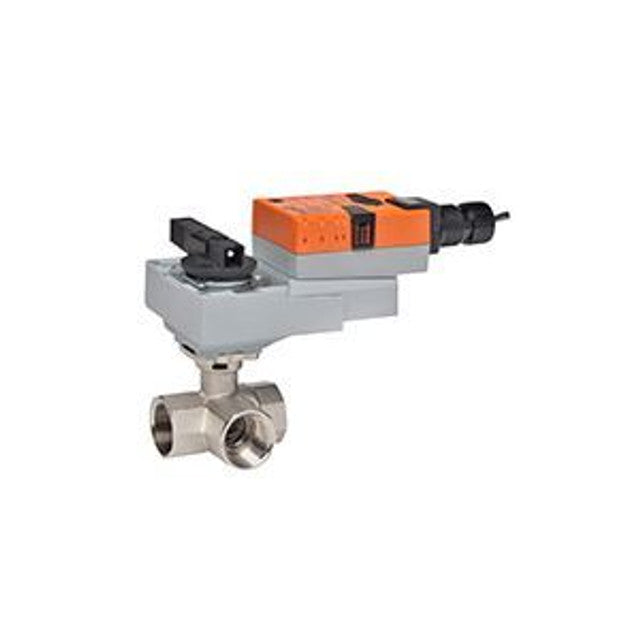

Belimo B329+ARB24-SR-T CCV Assembly 3 Way 1-1/4 in NPT 10 Cv

Product Description

The Belimo B329+ARB24-SR-T is a characterized control valve for HVAC applications. This valve features a forged brass and nickel-plated brass body, designed for durability and reliability in varied environments. It accommodates a direct coupled actuator with a modulating function, providing precise control for both heating and cooling systems. The actuator operates at 24 VAC and can utilize a control signal of either 2 to 10 VDC or 4 to 20 mA.

• Material: Brass body, stainless steel ball and stem
• Operating range: -22 degrees Fahrenheit to 122 degrees Fahrenheit
• Flow characteristics: A-Port Equal Percentage

Product Highlights

This valve is ideal for use in air handling units on heating or cooling coils and fan coil units. It ensures efficient operation in hydronic systems with variable or constant flow.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B329+ARB24-SR-T

Technical Specifications

• Angle of Rotation: 90 degrees
• Close-Off Pressure: 200 psi
• Power Consumption: 2.5 W running, 0.4 W holding
• Electrical Connection: Terminal block
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Service: Suitable for chilled and hot water, up to 60% glycol
• Degree of Protection: IP54, NEMA 2
• Control Type: DC 2 to 10 V
