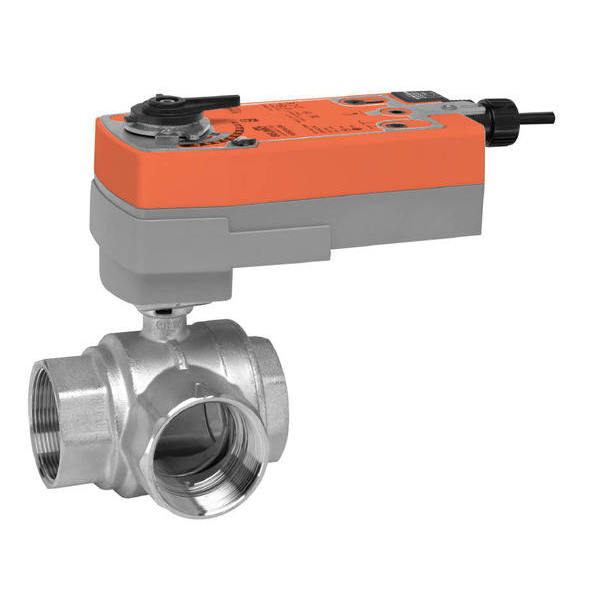

Belimo B329+AFRX24-MFT-S CCV 1.25 3 Way 10 Cv w/ Spg Rtn 24V MFT SW

Product Description

The Belimo B329+AFRX24-MFT-S is a three-way valve actuator designed for hydronic systems. It operates on twenty-four volts and provides a flow rate of ten Cv. This valve is often used in air handling units and fan coil units to control the flow of chilled or hot water. It is suitable for both variable and constant flow applications.

• Three-way valve actuator for hydronic systems
• Compatible with chilled or hot water up to sixty percent glycol
• Spring return actuator type with programmable control

Product Highlights

This valve actuator is ideal for controlling flow in heating and cooling coils, ensuring efficient operation in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B329+AFRX24-MFT-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1.25 inches
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA 2 UL
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 3 W
• Power Consumption (Running): 7.5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
