Belimo B329 CCV 3 Way 1-1/4 in NPT 10 Cv

Product Description

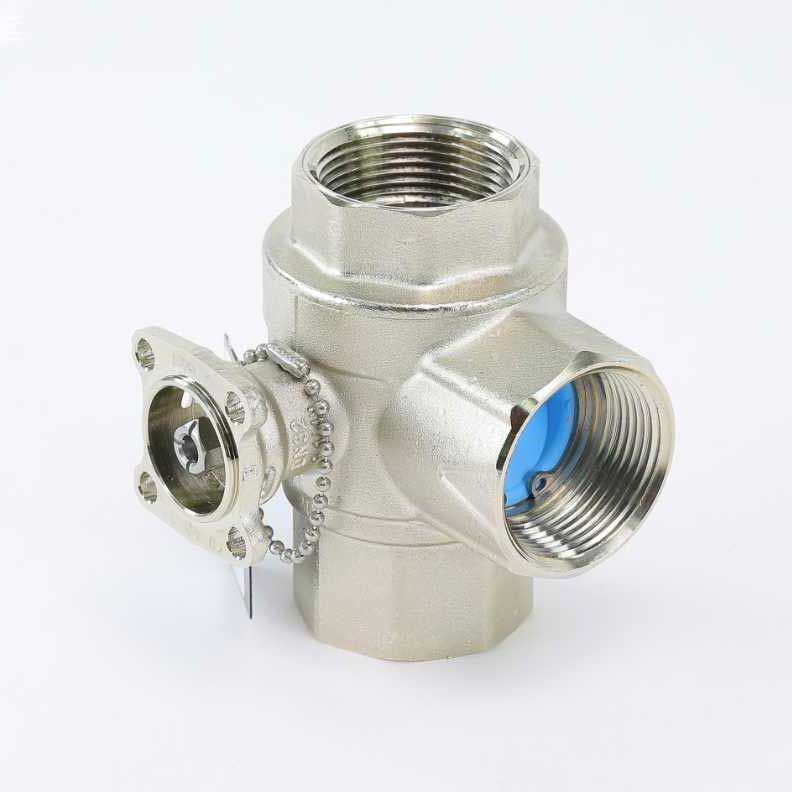

The Belimo B329 is a 3-way characterized control valve with a size of one and one quarter inches NPT and a flow capacity of ten Cv. This valve is commonly used in air handling units and fan coil systems for efficient control of chilled or hot water applications. It features a forged brass body and a stainless steel ball and stem for durability. The valve is rated for water temperatures up to 250 degrees Fahrenheit and can be used in systems with up to 60 percent glycol.

• Typical use in heating or cooling coils
• Ball valve design ensures self-cleaning
• Zero leakage performance

Product Highlights

The Belimo B329 is ideal for applications requiring precise control of water flow in HVAC systems. Its characterized control mechanism improves stability and part-load behavior, optimizing energy consumption.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B329

Technical Specifications

• Fluid: Chilled or hot water up to 60 percent glycol
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Valve Size: 1.25 inches
• End Fitting: Internal thread
• Trim: Stainless steel
• Body Pressure Rating: 400 psi
