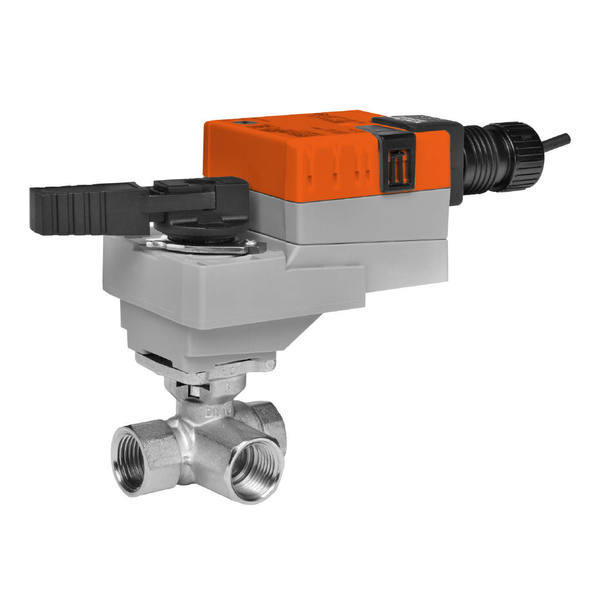

Belimo B325L+LRX24-MFT Ball Valve 1 3 Way 11 Cv w/ Non-Spg 24V MFT

Product Description

The Belimo B325L+LRX24-MFT is a three-way ball valve with a size of one inch. It operates on a voltage of twenty-four volts, making it suitable for various HVAC applications. This valve is designed for controlling the flow of chilled or hot water, with compatibility for up to sixty percent glycol fluids.

• Angle of rotation is ninety degrees for precise flow control.
• Flow characteristic is controllable within a range of seventy-five degrees.
• Trim material is chrome plated brass, ensuring durability in a range of environments.

Product Highlights

Ideal for HVAC systems, this valve provides reliable performance and easy installation. It comes with a manual override feature for emergency operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B325L+LRX24-MFT

Technical Specifications

• Valve Size: 1 [25]
• Pattern: 3-way
• Pressure Independent: No
• Fluid: Chilled or hot water up to 60% glycol
• Cv: 11
• Actuator Type: Non fail-safe
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24V
