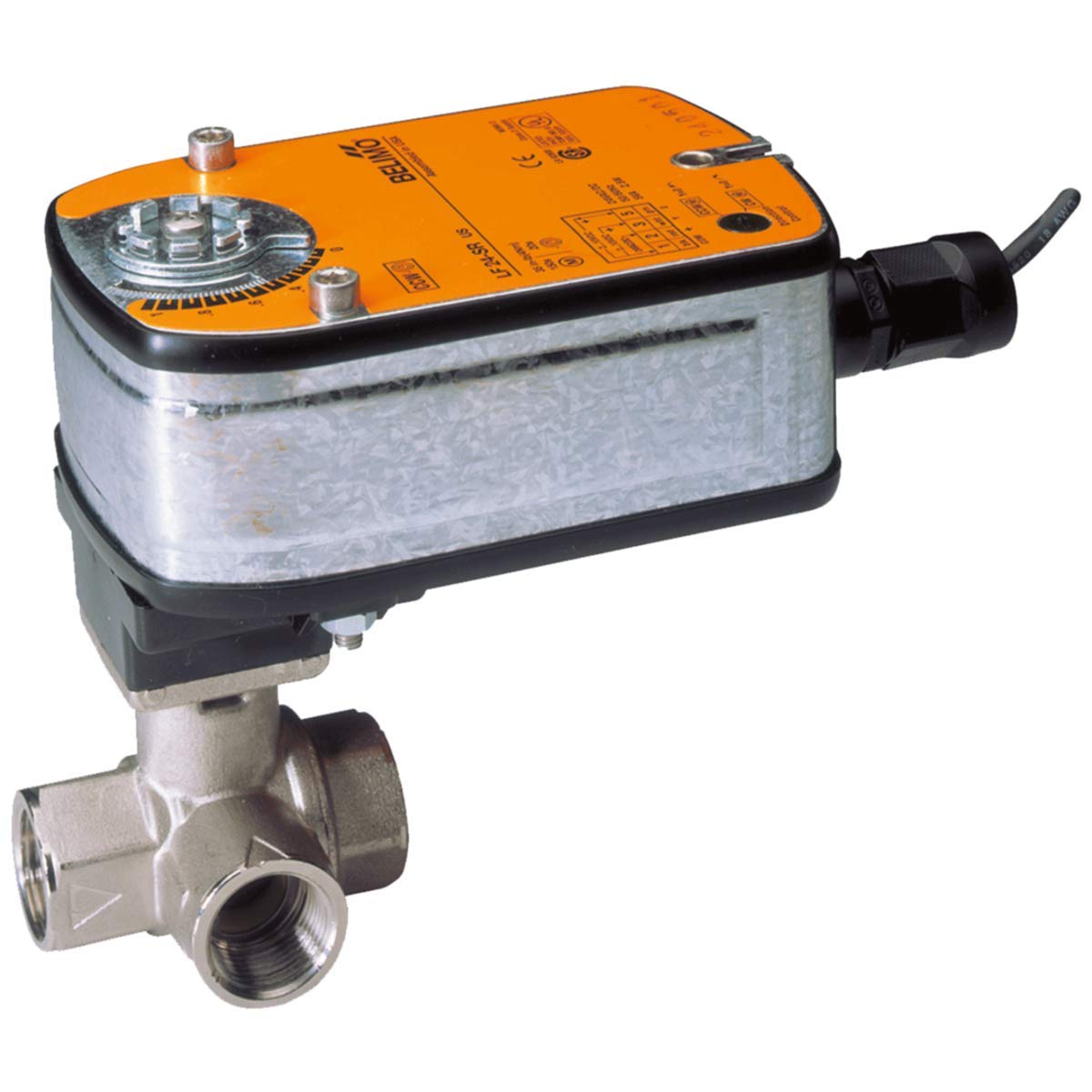

Belimo B325L+LF24-MFT-S US Ball Valve 3 Way, 1 in. NPT

Product Description

The BELIMO B325L+LF24-MFT-S US ball valve assembly features a forged brass, nickel-plated brass body and a chrome-plated brass ball and stem. Designed for air handling units on heating or cooling coils, and fan coil units, this valve is suitable for hydronic systems with variable or constant flow.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Or Constant Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This ball valve assembly offers self-cleaning and zero leakage, making it ideal for various applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B325L+LF24-MFT-S US
• Country of Origin: Unknown

Technical Specifications

• Angle of Rotation: 90
• Cv: 11
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 1" [25]
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <25 s
• Running Time (Motor): 150 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Actuator: LF24-MFT-S US
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: NPT
• Aux. Switch: 1
• Nema Rating: Nema 2
• Valve Piping: 3-Way
• Control Signal: 0-10vdc, 2-10vdc
• Feedback Signal: 2-10vdc
• Close-Off Rating: 200 PSI
• Torque: 35 in-lb
• Supply Voltage (Nominal): 24 VAC
• Size: 1 in
• Control type: MFT/Programmable
• Auxiliary Switch: 1 SPDT
• Body Pressure Rating: 600 psi
• Flow characteristic {Tools}: Linear
• Power Consumption For Wire Sizing: 7 VA
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Brand: BELIMO
