Product Description

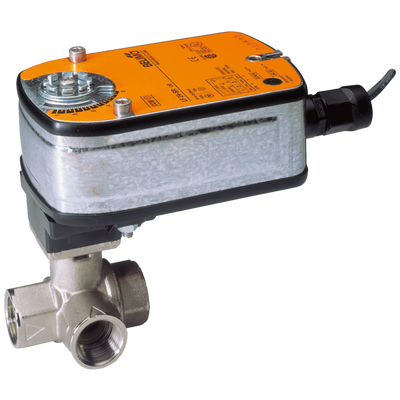

The Belimo B325L+LF24-3 is a ball valve designed for efficient flow control in HVAC systems. This valve features a three-way design with a Cv rating of eleven, making it suitable for various applications. The actuator operates on twenty-four volts and is equipped with a spring return for reliable performance.
- Three-way configuration
- Actuator type: Spring return
- Voltage: 24V AC/DC
Product Highlights
This valve is ideal for managing chilled or hot water systems with fluid compatibility up to sixty percent glycol.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B325L+LF24-3
Technical Specifications
-
Valve Size: 1 inches (25 mm)
-
Angle of Rotation: 90 degrees
-
Controllable Flow Range: 75B0
-
Cv: 11
-
End Fitting: Internal thread
-
Fluid Compatibility: Chilled or hot water up to 60% glycol
-
Pattern: 3-way
-
Pressure Independent: NO
-
Trim Material: Chrome plated brass
-
Actuator Type: Spring return
-
Degree of Protection: IP54 NEMA2
-
Electrical Connection: Cable
-
Power Consumption (Holding): 1 W
-
Power Consumption (Running): 2.5 W
-
Running Time (Fail-safe): Less than 25 seconds
-
Running Time (Motor): 150 seconds / 90 degrees
-
Voltage AC/DC: 24 V
