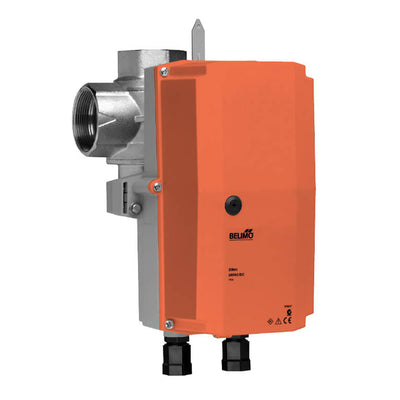

Belimo B325+NRX24-SR-T-N4 | CCV | 1 | 3 Way | 30 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H

Product Description

The Belimo B325+NRX24-SR-T-N4 is a three-way valve actuator with a Cv rating of thirty. It operates at twenty-four volts and supports a control range of DC two to ten volts. This actuator features an internal thread for end fitting and is suitable for various fluid types including chilled or hot water mixed with up to sixty percent glycol.

• Non fail-safe actuator type
• NEMA 4X rated for protection
• Manual override via external push button

Product Highlights

Utilized in water systems, this valve is essential for regulating flow with high precision.

Product Information

Standard Information

• Valve Size: 1 [25]
• Fluid Type: Chilled or hot water up to 60% glycol

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Trim Type: Stainless steel
• Pressure Independent: No
• Electrical Connection: Terminals
• Power Consumption (Holding): 0.6 W
• Power Consumption (Running): 3.5 W
• Running Time (Motor): 90 seconds / 90 B0
• Voltage AC/DC: AC/DC 24 V
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
