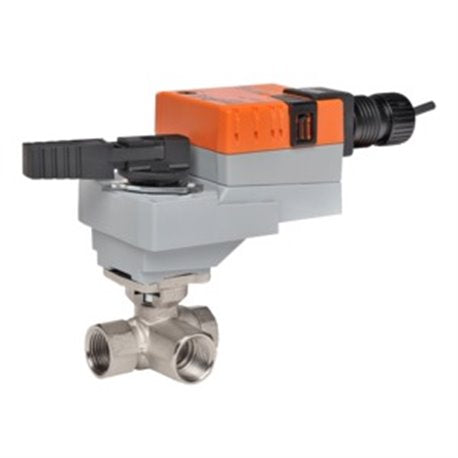

Belimo B325+LRB120-3 CCV Assembly 3 Way 1 in NPT 30 Cv

Product Description

The Belimo B325+LRB120-3 is a Characterized Control Valve designed for precision in HVAC applications. This valve features a one-inch NPT connection and a flow coefficient of 30 Cv. It is suitable for use in both heating and cooling systems, ensuring optimal performance.

• Forged brass and nickel-plated brass body for durability.
• Direct coupled actuator with non-spring return operation.
• Designed for chilled and hot water applications up to sixty percent glycol.

Product Highlights

This valve is typically used in air handling units and fan coil units, providing reliable control over water flow.

Product Information

Standard Information

• Part Number: B325+LRB120-3
• Brand: Belimo

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up to 60% Glycol
• Power Consumption: 2 W Running, 0.5 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
