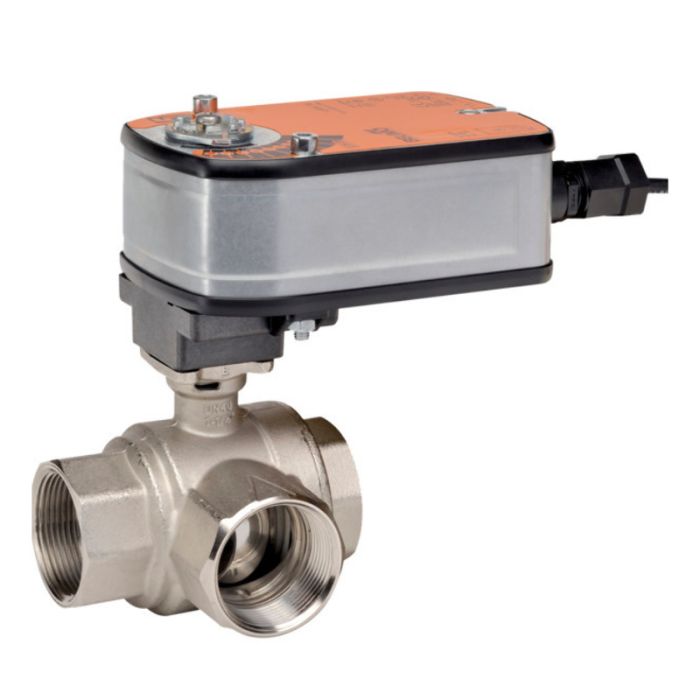

Belimo B325+LF24US CCV Assembly 3 Way 1 in NPT 30 Cv

Product Description

The Belimo B325+LF24US is a control valve designed for use in HVAC systems. This valve is typically installed in air handling units and fan coil systems for regulating heated or cooled water. It is suitable for applications that require both variable and constant flow configurations. The valve has a forged brass body with nickel plating, enhancing its durability.

• Direct coupled actuator with a torque rating of thirty-five inch-pounds
• Spring return feature for reliable operation
• Operates effectively with water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

Utilized in hydronic systems, the Belimo valve ensures efficient performance in controlling water flow. It features a ball valve design for self-cleaning and eliminates the risk of leakage.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B325+LF24 US

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up To 60% Glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Power Consumption: 5 W Running, 2.5 W Holding
• Degree of Protection: IP54 NEMA 2
