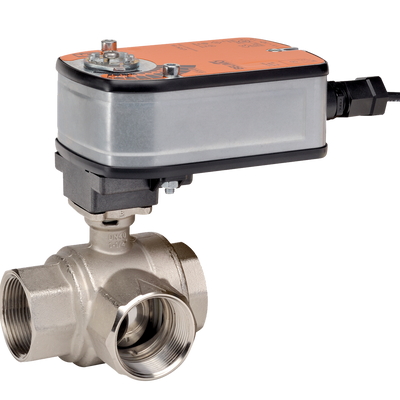

Belimo B325+LF24-MFT-S | CCV | 1 | 3 Way | 30 Cv | w/ Spg Rtn | 24V | MFT | SW

Product Description

Belimo B325+LF24-MFT-S is a three-way control valve suitable for air handling units and fan coil units. Common applications include unit ventilators, VAV box reheat coils, and bypass loops. This valve operates in hydronic systems with either variable or constant flow.

• Used in heating and cooling applications
• Compatible with chilled or hot water systems
• Features a stainless steel trim

Product Highlights

This valve comes with a spring return actuator and supports a nominal flow coefficient of thirty Cv. It is designed for reliable operation in demanding environments.

Product Information

Standard Information

• Brand: Belimo
• Valve Size: 1 inch

Technical Specifications

• Cv: 30
• Angle of Rotation: 90 degrees
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• End Fitting Type: Internal thread
• Actuator Type: Spring return
• Electric Connection Type: Cable
• Voltage: AC/DC 24 volts
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
