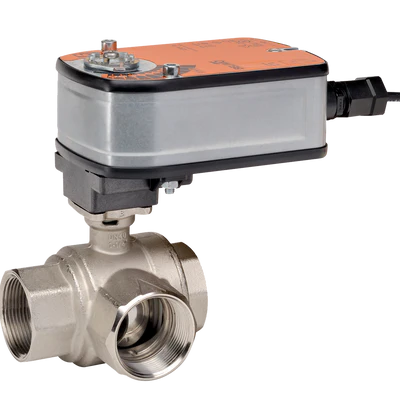

Belimo B325+LF24-MFT CCV 1 Inch 3-Way Valve 30 Cv 24V Spring Return

Product Description

The Belimo B325+LF24-MFT valve is designed for air handling units and heating or cooling coils. It is suitable for hydronic systems with variable or constant flow settings.

• Uses: air handling units, fan coil units
• Suitable for hydronic systems
• Variable or constant flow settings

Product Highlights

This Belimo valve is a three-way characterized control valve (CCV) with a 30 Cv rating. It features stainless steel trim, a 1-inch NPT connection, and a spring return actuator. Operates on 24V and includes motor and spring return functionalities.

Product Information

Standard Information

• Brand: Belimo
• MPN: B325+LF24-MFT

Technical Specifications

• Valve Size: 1 inch (25 mm)
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Trim: Stainless steel
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 30
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
• Pressure Independent: No
