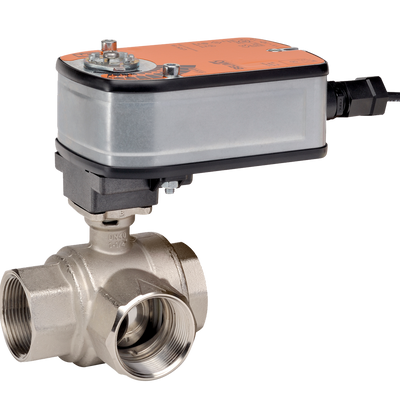

Belimo B325+LF120 CCV 1 3 Way 30 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B325+LF120 is a three-way valve designed for controlling the flow of chilled or hot water with a capacity of thirty Cv. With a spring return actuator, this valve is suitable for various HVAC applications. It operates at an electrical voltage of one hundred twenty volts and has a reliable on/off function.

• Three-way valve with a Cv rating of thirty
• Spring return actuator for reliable operation
• Compatible with chilled or hot water systems

Product Highlights

This valve is ideal for HVAC systems requiring precise flow control and dependability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B325+LF120

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 30
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 [25]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage: AC 120 V
