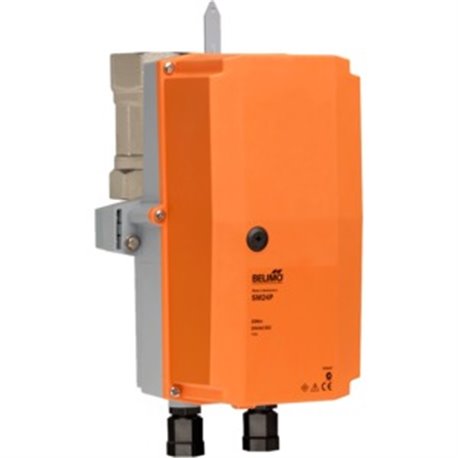

Belimo B323+NRX24-MFT-T N4 | CCV | 1 | 3 Way | 10 Cv | w/ Non-Spg | 24V | MFT | NEMA 4H

Product Description

The Belimo B323+NRX24-MFT-TN4 is a control valve designed for reliable performance in HVAC applications. It features a three-way valve configuration, ideal for regulating chilled or hot water flows. This model operates at twenty-four volts and comes with a non-fail-safe actuator for versatility in control.

• Reliable three-way valve suitable for HVAC systems
• Utilizes a non-fail-safe actuator
• Handles fluid mixtures of chilled or hot water with up to sixty percent glycol

Product Highlights

This valve option provides robust functionality and an IP66/67 NEMA 4X degree of protection, making it suitable for various environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: B323+NRX24-MFT-TN4

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch (25 mm)
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
• Electrical Connection: Terminals
• Manual Override: External push button
• Power Consumption (Holding): 1.3 W
• Power Consumption (Running): 3.5 W
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
