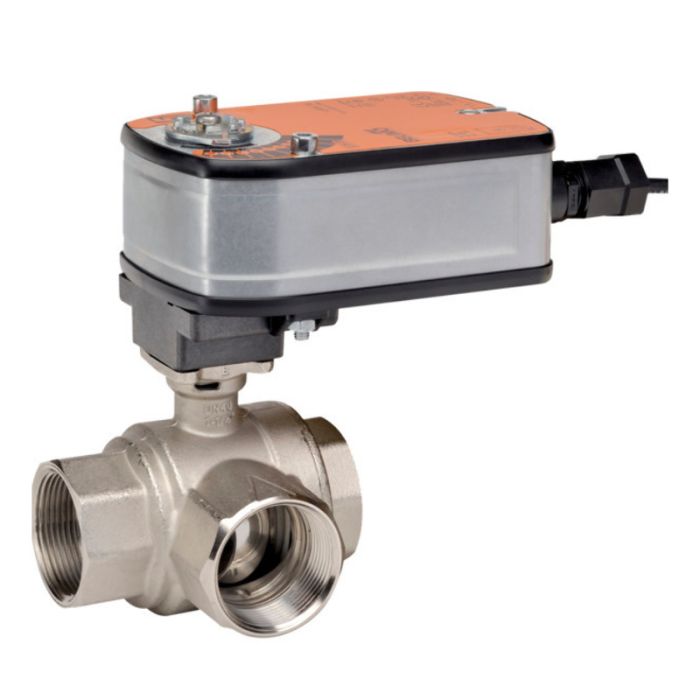

Belimo B323+LF24US CCV Assembly 3 Way 1 in. NPT 10 Cv

Product Description

The Belimo B323+LF24US is a characterized control valve designed for efficient flow control in HVAC systems. This valve features a one inch NPT connection and a 10 Cv flow capacity. It operates with a direct coupled actuator and is rated for on/off service with a spring return mechanism. Ideal for air handling units, this unit can handle chilled or hot water systems with up to sixty percent glycol.

• Rated for water temperatures up to 250 F
• Suitable for hydronic systems with variable or constant flow
• Self-cleaning ball valve design offers zero leakage

Product Highlights

This product is suitable for both heating and cooling applications and supports HVAC professionals in achieving precise temperature control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B323+LF24US

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 5 W Running, 2.5 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Angle of Rotation: 90
