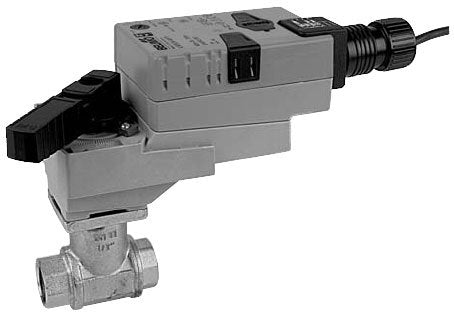

Belimo B322+LRB120-3 Characterized Control Valve 7.4 Cv Floating

Product Description

Belimo B322+LRB120-3 Characterized Control Valve is designed for HVAC applications, providing precise control for air handling units, heating or cooling coils, and fan coil units. This control valve is suitable for use in variable or constant flow hydronic systems.

• 7.4 Cv Flow Rate
• 100-240V Floating Control
• 1-inch Valve Size

Product Highlights

The Belimo B322+LRB120-3 control valve is perfect for use in air handling units, unit ventilators, VAV box reheat coils, and bypass loops. It works with hydronic systems using chilled or hot water with up to 60% glycol.

Product Information

Standard Information

• Brand: Belimo
• MPN: B322+LRB120-3
• Category: Control Valves

Technical Specifications

• Valve Type: 3-way
• Flow Rate (Cv): 7.4
• Voltage AC/DC: AC 100-240V
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Manual Override: External push button
• Power Consumption (Running): 2 W
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Running Time (Motor): 90 seconds
• Trim Material: Stainless steel
