Product Description

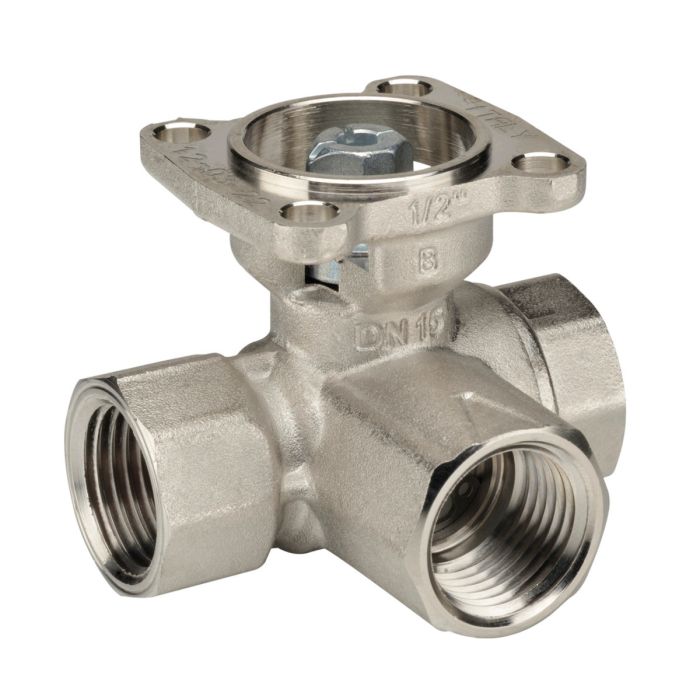

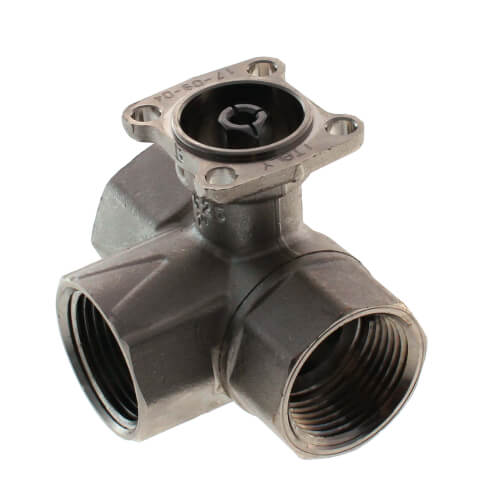

The Belimo B322 is a 1 inch, 3-way characterized control valve designed to ensure stability and control in HVAC systems. Its unique feature is the equal percentage characteristic, which provides a linear variation in thermal output as the valve opens. This allows for better control compared to conventional ball valves that often exhibit undesirable flow characteristics.
- Flow capacity of 7.4 Cv
- Suitable for heating and cooling applications
- Constructed with stainless steel ball and stem for longevity
Product Highlights
This valve optimizes energy consumption and improves part-load behavior, making it ideal for air handling units, fan coil systems, and various hydronic applications.
Product Information
Standard Information
Technical Specifications
-
Size: 1 inch
-
Type: 3-way NPT
-
Action: 90 degree rotation
-
Material: Stainless steel (ball & stem), Forged brass (body)
-
Warranty: 5 years
-
Flow Capacity (Cv): 7.4
-
Close Off Pressure: 200 psi
-
Body Pressure Rating: 600 psi
-
Connection Type: Female threaded
-
Shipping Weight: 1.3 lbs
-
Shipping Dimensions: 3.15 inches (depth) x 2.65 inches (width) x 2.35 inches (height)
