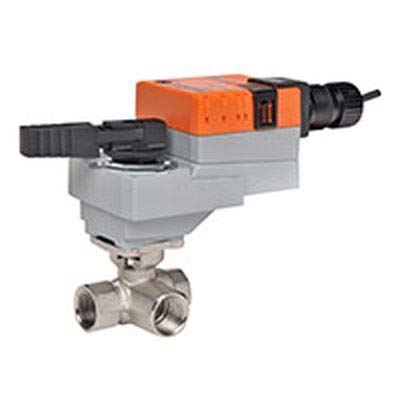

Belimo B321+LRX24-MFT CCV 0.75 Inch 3-Way 24 Cv Non-Spring 24V MFT Valve

Product Description

The Belimo B321+LRX24-MFT is a top-tier 3-way control valve designed for reliable operation in HVAC systems. Utilizing a 0.75 inch valve size and capable of handling up to 24 Cv, this unit is a vital component for managing fluid flow in air handling units, among other applications.

• Engineered for both hot and chilled water systems up to 60% glycol.
• Features stainless steel trim for enhanced durability.
• Includes a non-fail-safe actuator with MFT capability for precise control.

Product Highlights

This 24V valve integrates seamlessly into variable and constant flow hydronic systems, making it suitable for a myriad of environments, including VAV box reheat coils and fan coil unit heating or cooling coils.

Product Information

Standard Information

• Brand: Belimo
• MPN: B321+LRX24-MFT

Technical Specifications

• Valve Size: 0.75 inches
• Type: 3-way
• Control Type: MFT/Programmable
• Angle of Rotation: 90 degrees
• Electrical Connection: cable
• Manual Override: External push button
• Voltage: AC/DC 24V
• Running Time (Motor): 150 seconds / 90 degrees
