Belimo B320B+LF24 CCV 0.75 3 Way 14 Cv w/ Spg Rtn 24V On/Off

Product Description

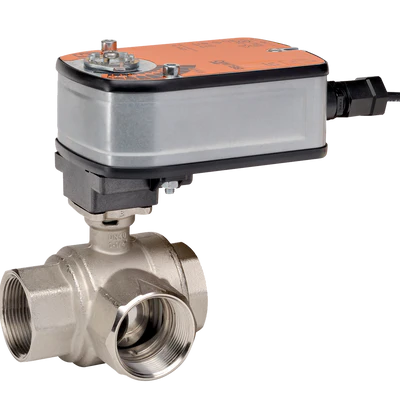

The Belimo B320B+LF24 is a control valve with a three-way design. This valve features a size of zero point seventy-five inches and operates on a twenty-four-volt system. The actuator has a spring return mechanism, designed for on/off service. It is suitable for use with chilled or hot water containing up to sixty percent glycol.

• Three-way valve configuration
• Spring return actuator
• Compatible with fluids up to sixty percent glycol

Product Highlights

This valve is ideal for HVAC applications where temperature control is essential.

Product Information

Standard Information

• Brand: Belimo
• MPN: B320B+LF24

Technical Specifications

• Valve Size: 0.75 inches
• Pattern: 3-way
• Cv: 14
• Angle of Rotation: 90
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure Independent: NO
• Trim: Chrome plated brass
• Electrical Connection: Cable
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): < 25 s
• Running Time (Motor): 75 s / 90
• Degree of Protection: IP54 NEMA 2
