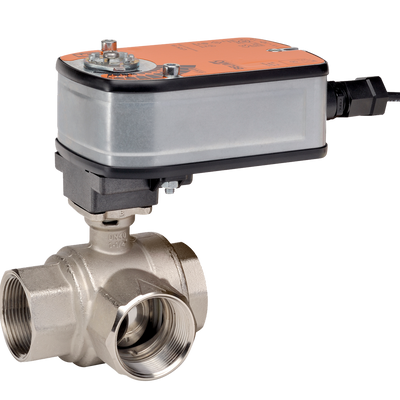

Belimo B320+LF24-S CCV 0.75 3 Way 14 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B320+LF24-S is a reliable three-way valve designed for efficient fluid control. This valve, with the MPN B320+LF24-S, operates on a voltage of twenty-four volts and is intended for applications involving chilled or hot water systems with up to sixty percent glycol.

• Three-way valve configuration
• Compatible with chilled and hot water systems
• Spring return actuator type

Product Highlights

This valve features a stainless steel trim and allows for maximum control over water flow. It is not pressure independent and includes auxiliary switches to enhance functionality.

Product Information

Standard Information

• Brand: Belimo
• MPN: B320+LF24-S

Technical Specifications

• Valve Size: 0.75 inches (20 mm)
• Cv: 14
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• End Fitting: Internal thread
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Electrical Connection: cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Voltage AC/DC: AC/DC 24 V
• Degree of Protection: IP54 NEMA 2
