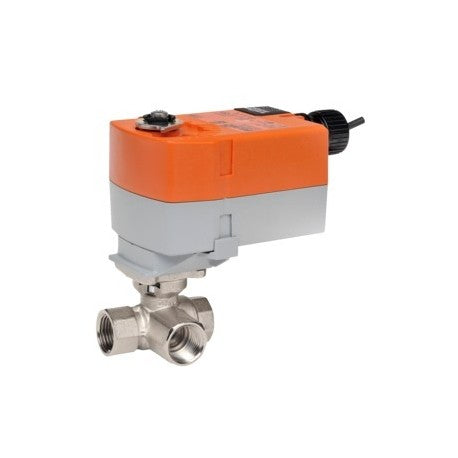

Belimo B318+TFRX24-MFT CCV Assembly 3 Way 3/4 in NPT 7.4 Cv

Product Description

Belimo B318+TFRX24-MFT is a characteristically controlled valve designed for various HVAC applications. This three-way valve enables precise handling of heating and cooling coils, making it suitable for air handling units and fan coil units. The valve operates on a quarter-turn mechanism and is equipped with a direct coupled actuator for reliable performance.

• Valve suitable for hydronic systems with variable or constant flow
• Features a stainless steel ball and stem for durability
• Designed with multi-function technology for versatile applications

Product Highlights

The valve is ideal for controlling water flow in heating and cooling systems. It offers both modulating and spring return capabilities, effective for temperatures up to 250°F.

Product Information

Standard Information

• Brand: Belimo
• MPN: B318+TFRX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 2.5 W running, 1 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-port equal percentage, B-port modified for constant common port flow
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: 3 ft, 10 ft, or 16 ft 18 GA appliance or plenum cables, with or without 1/2 in conduit connector
• Valve Size: 0.75 inches [20 mm]
