Belimo B318+NRX24-SR-T-N4 | CCV | 0.75 | 3 Way | 7.4 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H

Product Description

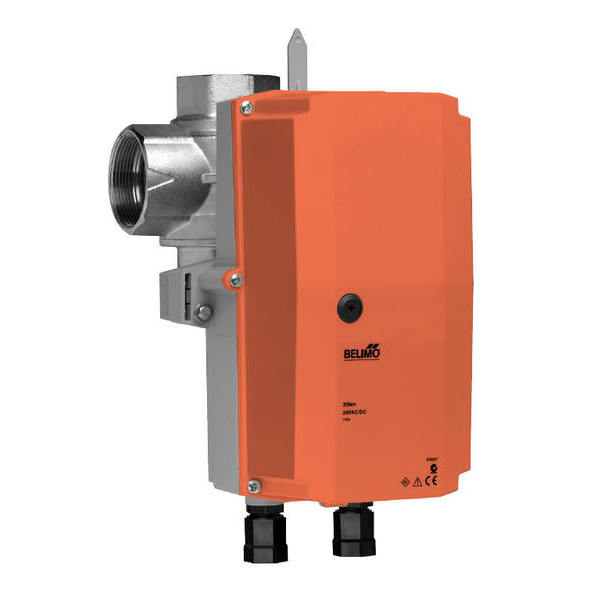

The Belimo B318+NRX24-SR-T-N4 is a three-way control valve designed for regulating chilled or hot water systems. This valve operates with a flow of 7.4 Cv and utilizes a non-fail-safe actuator. The valve is suitable for applications requiring precise control in HVAC systems.

• Compact size of 0.75 inches for flexible installation
• IP66/67 NEMA 4X enclosure for protection in harsh environments
• External manual override feature for easy control

Product Highlights

This valve is ideal for maintaining optimal temperature and flow rate in water delivery systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B318+NRX24-SR-T-N4

Technical Specifications

• Valve Size: 0.75 inches [20]
• Pattern: 3-way
• Cv: 7.4
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Control Type: DC 2...10 V
• Actuator Type: Non-fail-safe
• Electrical Connection: Terminals
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Holding): 0.6 W
• Power Consumption (Running): 3.5 W
