Belimo B318+LF24 CCV 0.75 3 Way 7.4 Cv w/ Spg Rtn 24V On/Off

Product Description

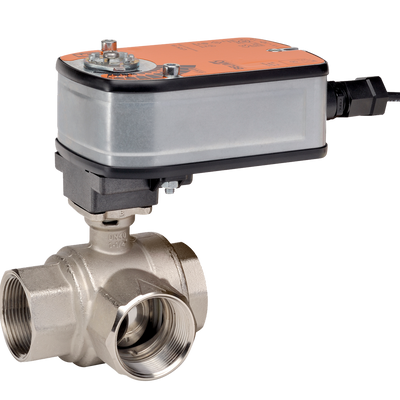

The Belimo B318+LF24 is a three-way control valve with a size of zero point seventy-five inches and a flow coefficient of 7.4. It is designed for applications with chilled or hot water up to sixty percent glycol. This valve operates with a spring return actuator and is powered by twenty-four volts. It is well-suited for various HVAC and plumbing systems.

• Three-way valve designed for chilled or hot water.
• Spring return actuator with IP54 protection.
• Flow capacity of 7.4 Cv for efficient performance.

Product Highlights

This control valve is reliable for fluid regulation in different heating or cooling systems, ensuring optimal performance in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B318+LF24

Technical Specifications

• Valve Size: 0.75 inches
• Pattern: Three-way
• Fluid Type: Chilled or hot water up to sixty percent glycol
• Angle of Rotation: Ninety degrees
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Voltage: AC/DC 24 V
• Degree of Protection: IP54 NEMA2
