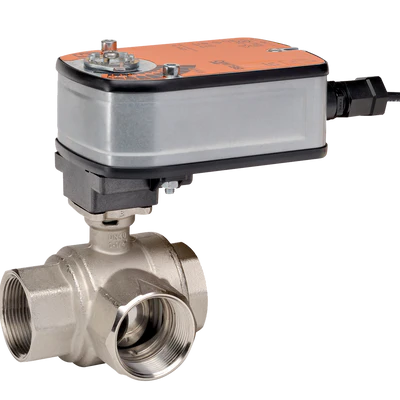

Belimo B318+LF24-3 CCV 0.75 3 Way 7.4 Cv w/ Spg Rtn 24V Floating

Product Description

The Belimo B318+LF24-3 is a valve designed for precise control in HVAC systems. This three-way valve allows for effective fluid management, whether dealing with chilled or hot water. It's ideal for applications that require reliable flow control.

• Valve size of zero point seventy-five inches (20 mm)
• Spring return actuator for dependable operation
• Rated for a flow coefficient (Cv) of seven point four

Product Highlights

The B318+LF24-3 valve features durable stainless steel trim, excellent for handling various types of fluid.

Product Information

Standard Information

• Brand: Belimo
• MPN: B318+LF24-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 7.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.75 inches (20 mm)
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 150 seconds per 90 degrees
• Voltage AC/DC: AC/DC 24 V
