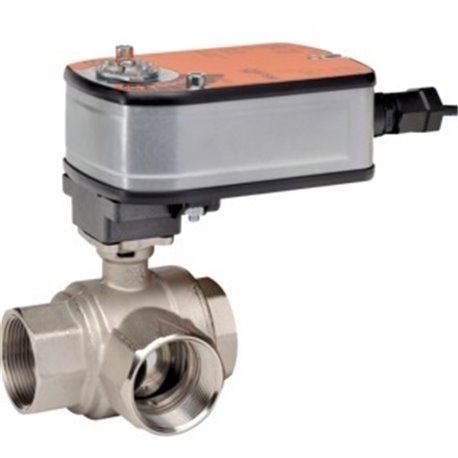

Belimo B317B+LF24-3 CCV 0.75 3 Way 4.7 Cv w/ Spg Rtn 24V Floating

Product Description

The Belimo B317B+LF24-3 is a 3/4 NPT valve that features a 4.7 Cv flow coefficient. This valve operates at 24 volts and utilizes a spring return actuator. It is designed for three-way flow applications with a maximum rotation angle of ninety degrees.

• Designed for chilled or hot water systems.
• Spring return actuator for reliable control.
• Compatible with internal threaded fittings.

Product Highlights

This valve can handle a controllable flow range of seventy-five B0 and is not pressure independent. It is constructed with chrome plated brass trim.

Product Information

Standard Information

• Brand: Belimo
• MPN: B317B+LF24-3

Technical Specifications

• Valve Size: 0.75 [20]
• Angle of Rotation: 90 degrees
• Cv: 4.7
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Actuator Type: Spring return
• Electrical Connection: Cable
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage: AC/DC 24 volts
• Degree of Protection: IP54 NEMA 2
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
