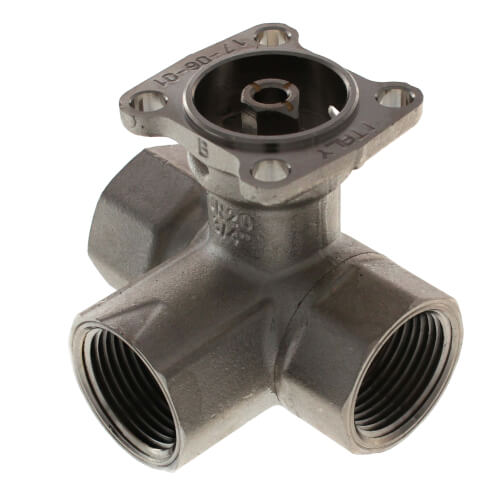

Belimo B317B CCV 3 Way 3/4 in NPT 4.7 Cv

Product Description

The Belimo B317B is a characterized control valve (CCV) designed for precise flow management in HVAC applications. This three-way valve is suitable for chilled or hot water systems with up to sixty percent glycol. The valve features a forged brass body, nickel-plated brass components, and chrome-plated brass ball for enhanced durability.

• Rated flow coefficient (Cv) of 4.7
• Designed to operate effectively between 0 to 250 degrees Fahrenheit
• Offers self-cleaning properties and zero leakage

Product Highlights

This valve is ideal for use in air handling units and fan coil units, ensuring smooth operation in various HVAC configurations.

Product Information

Standard Information

• Brand: Belimo
• MPN: B317B

Technical Specifications

• Flow Characteristic: A-Port Equal Percentage, B-Port Modified Linear for Constant Flow
• Close-Off Pressure: 200 psi
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Valve Size: 0.75 inches
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Trim Material: Chrome plated brass
• Pressure Independent: No
