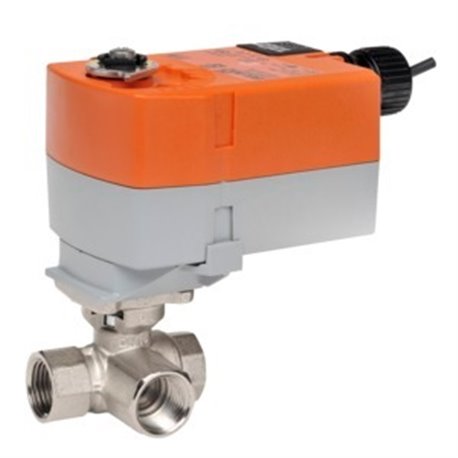

Belimo B317+TFRX24-MFT CCV Assembly 3 Way 3/4 in NPT 4.7 Cv

Product Description

The Belimo B317+TFRX24-MFT is a characteristically designed control valve for HVAC applications. It is engineered for modulating flow in heating or cooling systems. The valve operates effectively with chilled or hot water and can handle up to sixty percent glycol mixtures. This product features a robust forged brass body and stainless steel ball and stem for durability.

• Designed for air handling units and fan coil unit heating or cooling
• Self-cleaning ball valve with zero leakage capability
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

Utilized primarily in hydronic systems, this valve can function in both variable and constant flow settings. Its innovative MFT technology provides enhanced functionality.

Product Information

Standard Information

• Brand: Belimo
• Product SKU: B317+TFRX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 1 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified For Constant Flow
• Operating Conditions: -22 F To 122 F
• Electrical Connection: 3 ft, 10 ft, or 16 ft, 18 GA Appliance Cables
• Trim: Stainless Steel
• Valve Size: 0.75 inches
