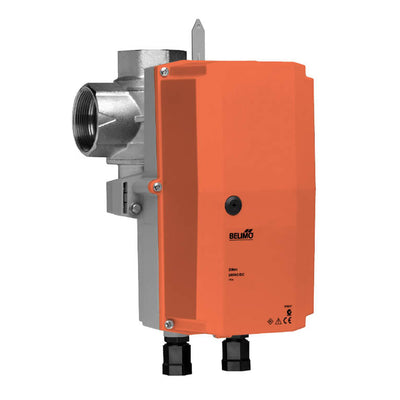

Belimo B317+NRX24-SR-T-N4 CCV | 0.75 | 3 Way | 4.7 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H

Product Description

The Belimo B317+NRX24-SR-T-N4 is a three-way control valve designed for fluid regulation in HVAC systems. This valve model operates at a size of zero point seventy-five inches and has a flow coefficient (Cv) of four point seven. The actuator is compatible with a voltage of twenty-four volts and can handle control signals from two to ten volts.

• Flow coefficient of four point seven
• Durable stainless steel trim
• Rated for chilled or hot water applications up to sixty percent glycol

Product Highlights

This valve features a three-way design to efficiently route fluid in HVAC systems. It supports DC control and boasts a NEMA four X enclosure rating, ensuring protection against dust and water ingress.

Product Information

Standard Information

• Brand: Belimo
• MPN: B317+NRX24-SR-T-N4

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.75 inches
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
• Electrical Connection: Terminals
• Manual Override: External push button
• Power Consumption (Holding): 0.6 W
• Power Consumption (Running): 3.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
