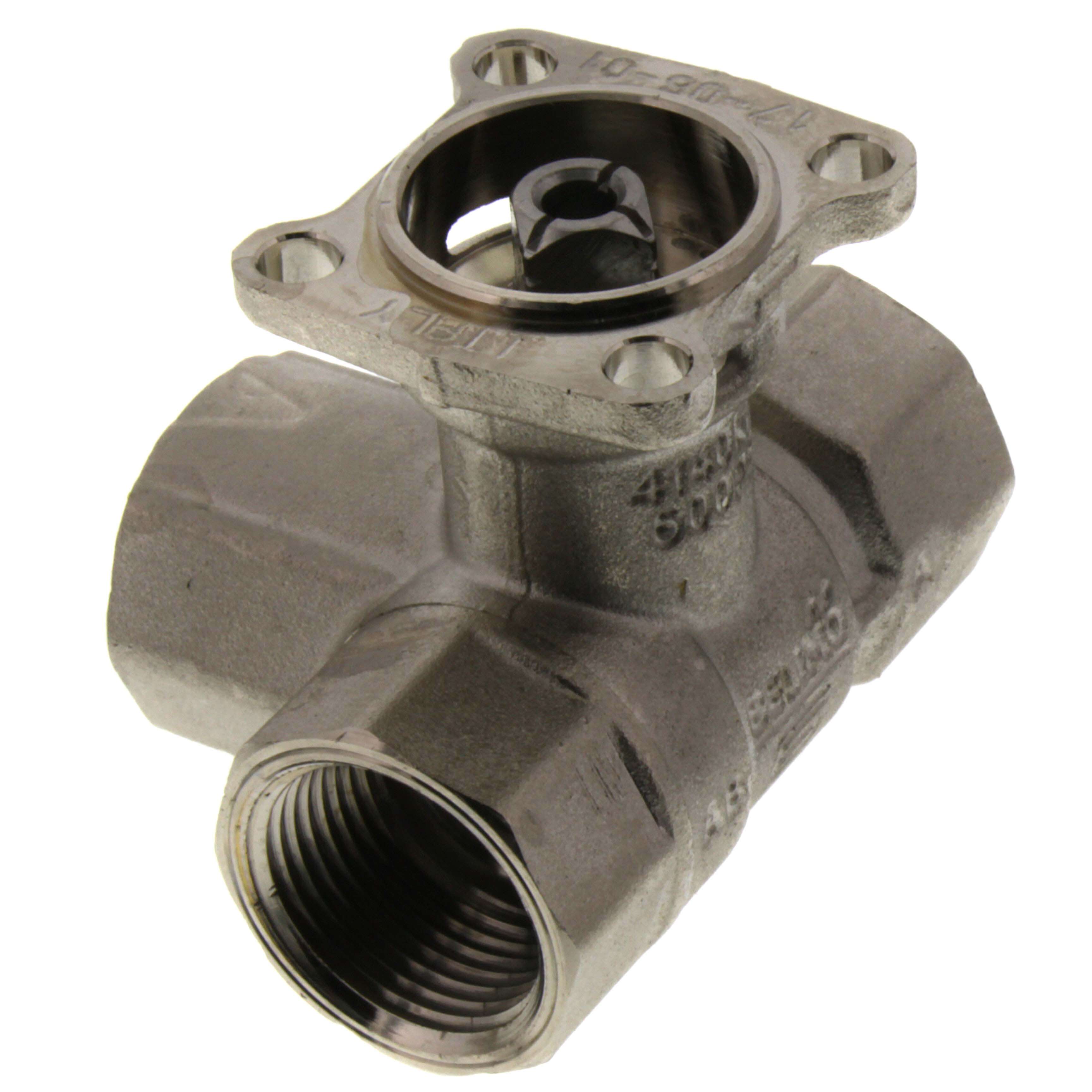

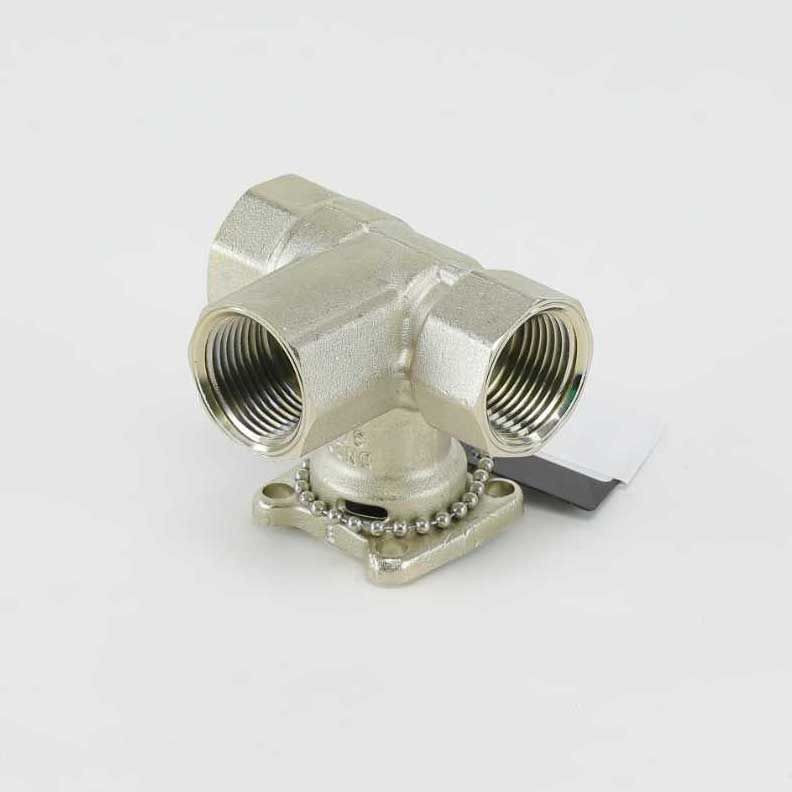

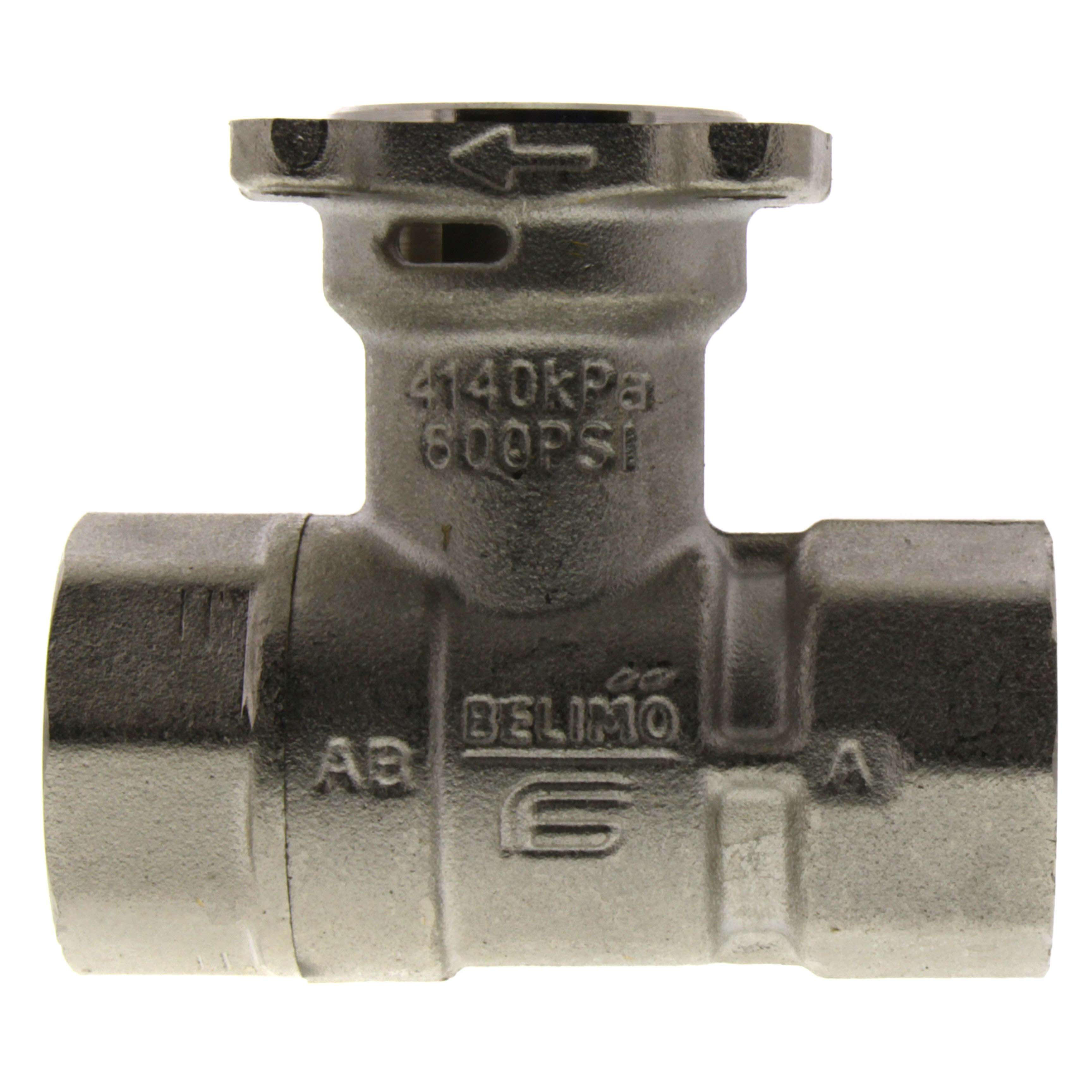

Belimo B317 CCV 3 Way 3/4 in NPT 4.7 Cv

Product Description

The Belimo B317 is a three-way characterized control valve designed for use in HVAC systems. It features a three-quarter inch NPT connection and a flow capacity of 4.7 Cv. This valve is suitable for both heating and cooling applications in air handling units and fan coil systems.

• Ball valve design ensures self-cleaning and reduces leakage.
• Operates effectively in hydronic systems, accommodating both variable and constant flow.
• Constructed with a nickel-plated brass body and stainless steel ball and stem.

Product Highlights

This valve provides stability in thermal control and is ideal for applications that require precise flow regulation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B317

Technical Specifications

• Service: Chilled, Hot Water, Up to 60% Glycol
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified for Constant Common Port Flow
• Body Pressure Rating: 600 psi
• Weight: 0.90 lbs
• Shipping Dimensions: 2.5 x 2.7 x 2.15 inches
