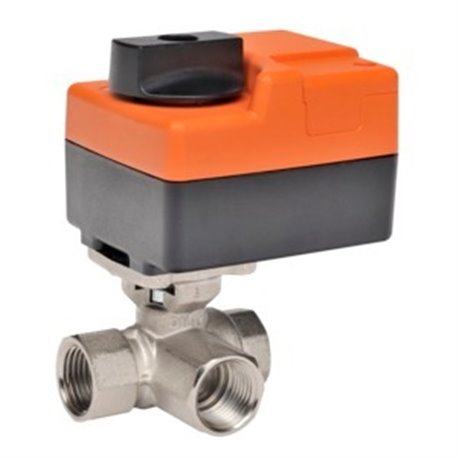

Belimo B316+TR24-SR CCV 0.5 3 Way 16 Cv w/ Non-Spg 24V 2-10V

Product Description

The Belimo B316+TR24-SR is a three-way control valve with a flow capacity of 16 Cv. Designed for chilled or hot water applications, this 0.5-inch valve features stainless steel trim and operates with 24V AC/DC power. Its DC 2-10V control type allows for precise management in various HVAC systems.

• Three-way design for optimal fluid control.
• Durable stainless steel trim.
• 24V voltage for versatile application.

Product Highlights

This valve is ideal for both heating and cooling systems, featuring a robust build suitable for diverse environments. Its design efficiently manages water flow and pressure, which is crucial for maintaining system performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B316+TR24-SR

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 16
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches [15]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA1
• Electrical Connection: Cable
• Manual Override: Push down handle
• Power Consumption (Running): 0.5 W
• Running Time (Motor): 90 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
