Belimo B316+LF24 | CCV | 0.5 | 3 Way | 16 Cv | w/ Spg Rtn | 24V | On/Off

Product Description

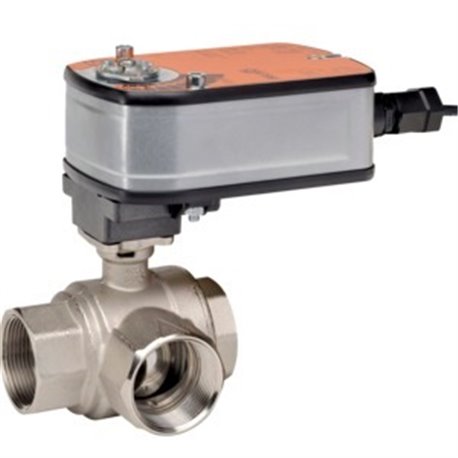

The Belimo B316+LF24 is a control valve designed for efficient water flow management. This model features a three-way pattern and is capable of handling a flow coefficient of 16 Cv. Operated by a spring return actuator, it is suitable for both chilled and hot water applications, including mixtures up to sixty percent glycol.

• Valve Size: half inch
• Electrical Specification: operates on 24V AC/DC
• Angle of Rotation: 90 degrees

Product Highlights

Durable stainless steel trim ensures long-lasting performance. The valve is designed to provide optimal fluid control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B316+LF24

Technical Specifications

• Valve Size: 0.5 inch (15 mm)
• Cv: 16
• Pattern: 3-way
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Voltage AC/DC: 24V
• Running Time (Motor): 75 seconds / 90 degrees
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
