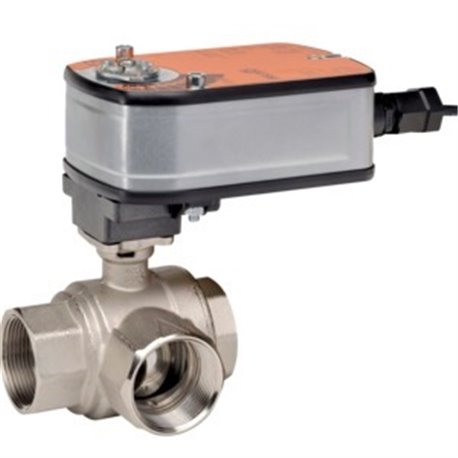

Belimo B316+LF24-3 | CCV | 0.5 | 3 Way | 16 Cv | w/ Spg Rtn | 24V | Floating

Product Description

The Belimo B316+LF24-3 is a three-way control valve designed for efficient fluid management. This valve operates with a flow capacity of sixteen Cv and is compatible with chilled or hot water systems, even with up to sixty percent glycol. It features a spring return actuator powered by twenty-four volts.

• Three-way flow pattern
• Stainless steel trim for durability
• Applicable for heating and cooling systems

Product Highlights

The B316+LF24-3 is ideal for use in HVAC systems requiring reliable flow control for both heating and cooling.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B316+LF24-3

Technical Specifications

• Valve Size: 0.5 [15]
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 16
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim Material: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage: AC/DC 24 V
