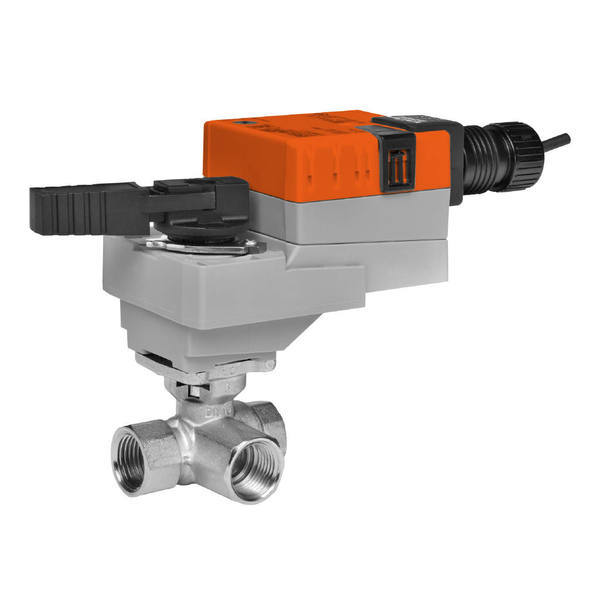

Belimo B315L+LRB24-3 Ball Valve Assembly 3 Way 1/2 in NPT

Product Description

The Belimo B315L+LRB24-3 is a three-way ball valve assembly designed for HVAC applications. It features a half-inch NPT connection and is suitable for both chilled and hot water systems. This valve is commonly used in air handling units and fan coil units.

• Direct coupled actuator for efficient operation
• Self-cleaning design minimizes maintenance
• Rated for water temperatures up to 250 degrees Fahrenheit

Product Highlights

This valve provides reliable performance and zero leakage due to its innovative ball valve design. It is suitable for hydronic systems and can handle variable or constant flow rates.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B315L+LRB24-3

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 1.5 W running, 0.2 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Modified linear
• Operating Conditions: -22 degrees Fahrenheit to 122 degrees Fahrenheit
• Electrical Connection: 3 ft 18 GA plenum cable with 1/2 in conduit connector
• Angle of Rotation: 90 degrees
