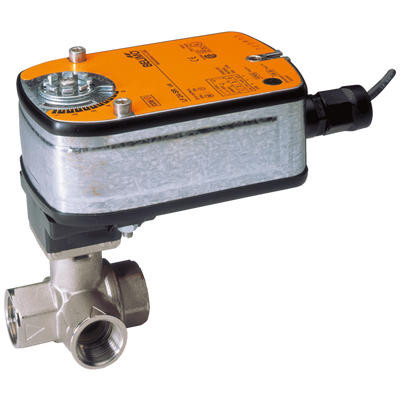

Belimo B315L+LF24-MFT Ball Valve 0.5 3 Way 6.4 Cv w/ Spg Rtn 24V MFT

Product Description

The Belimo B315L+LF24-MFT is a ball valve designed for reliable control of fluid flow. This valve features a size of 0.5 inches with a three-way pattern and a Cv of 6.4. It is suitable for use with chilled or hot water, capable of handling up to sixty percent glycol mixtures. This product operates on a twenty-four-volt power supply.

• Three-way valve pattern for versatile fluid control.
• Chrome plated brass trim for durability.
• Spring return actuator for efficient operation.

Product Highlights

The valve is ideal for applications requiring precise flow regulation in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315L+LF24-MFT

Technical Specifications

• Valve Size: 0.5 [15]
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 6.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
