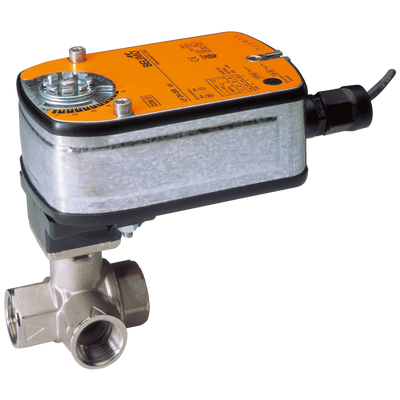

Belimo B315L+LF24 Ball Valve 0.5 3 Way 6.4 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B315L+LF24 is a ball valve designed for use in HVAC applications. This valve features a three-way design and operates at a voltage of twenty-four volts. It is suitable for controlling the flow of chilled or hot water mixed with up to sixty percent glycol.

• Voltage: 24V
• Type: 3-way ball valve
• Flow capacity: 6.4 Cv

Product Highlights

The B315L+LF24 is built for efficiency in fluid management. It performs well in various environmental conditions, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315L+LF24

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 6.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
