Belimo b315b+tr24-3 us ccv assembly 3 way 24 vac 1/2 in. npt

Product Description

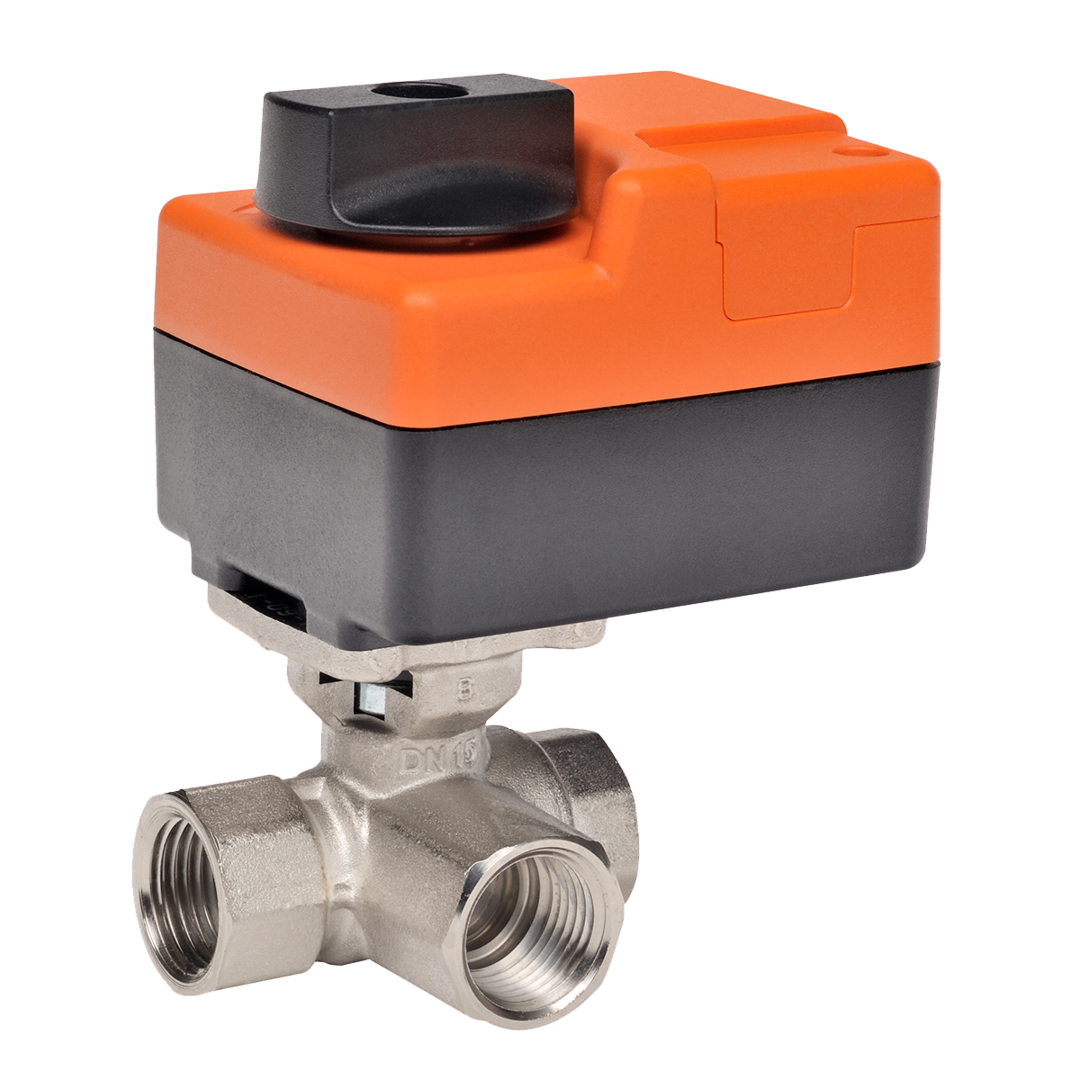

The BELIMO B315B+TR24-3 US is a Characterized Control Valve (CCV) assembly designed for precise flow regulation in hydronic systems. Featuring a 1/2 inch NPT connection and a 10 Cv rating, this 3-way valve operates with a 24 VAC non-spring return actuator, offering on/off and floating point control. Its robust construction includes a forged brass body and chrome-plated brass ball, ensuring durability and zero leakage for HVAC applications.

• Valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.
• Valve is suitable for use in a hydronic system with variable or constant flow.
• Ball valve design offers self-cleaning and zero leakage.

Product Highlights

Rated for water temperatures up to 250 F.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B315B+TR24-3 US

Technical Specifications

• Enclosure Rating: NEMA Type 1, IP40
• Fluid Compatibility: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 1 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified Linear For Constant Flow
• Operating Temperature: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Controllable Flow Range: 75
• Cv Rating: 10
• End Fitting: Internal thread
• Valve Pattern: 3-way
• Pressure Independent: NO
• Trim Material: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Manual Override: Push down handle
• Running Time: 90 seconds
• Voltage: AC 24V
• Actuator Model: TR24-3 US
• Assembly Type: Assembly
• Connection Type: NPT
• Valve Type: Regular
