Belimo B315B+LF24-SR-S | CCV | 0.5 | 3 Way | 10 Cv | w/ Spg Rtn | 24V | 2-10V | SW

Product Description

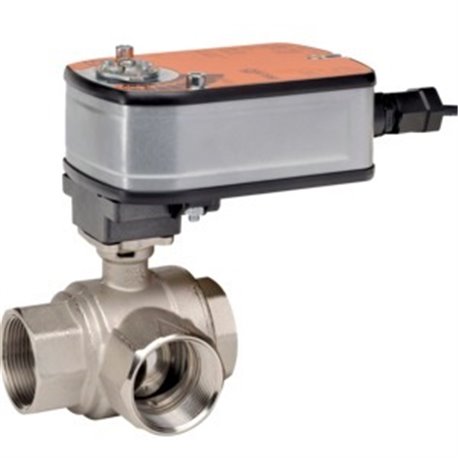

The Belimo B315B+LF24-SR-S is a three-way control valve designed for various heating and cooling applications. This valve features a size of half an inch, a Cv rating of 10, and operates at 24 volts with a spring return actuator. It is suitable for use with chilled or hot water systems containing up to sixty percent glycol.

• Three-way design for versatile applications
• Spring return actuator for reliable operation
• Compatible with 24V AC/DC power sources

Product Highlights

Ideal for HVAC applications, this valve provides precise control over fluid flow in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Belimo
• MPN: B315B+LF24-SR-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 10
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to sixty percent glycol
• Pattern Type: 3-way
• Pressure Independent: No
• Trim Material: Chrome plated brass
• Valve Size: 0.5 inches (15 mm)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: 24 V
