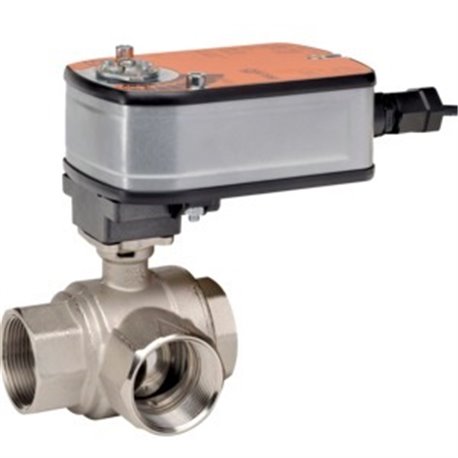

Belimo B315B+LF24-S CCV 0.5 3 Way 10 Cv w/ Spg Rtn 24V On/Off SW

Product Description

The Belimo B315B+LF24-S is a three-way control valve designed for HVAC applications. This valve operates at 24 volts and offers a flow coefficient of ten, making it suitable for various heating and cooling systems.

• Compatible with chilled or hot water systems
• Spring return actuator for reliable operation
• Chrome plated brass trim for durability

Product Highlights

This valve is ideal for managing water flow in HVAC systems, providing efficient and reliable control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315B+LF24-S

Technical Specifications

• Valve Size: 0.5 [15]
• Cv: 10
• Pattern: 3-way
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure Independent: No
• Trim: Chrome plated brass
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage: AC/DC 24 V
