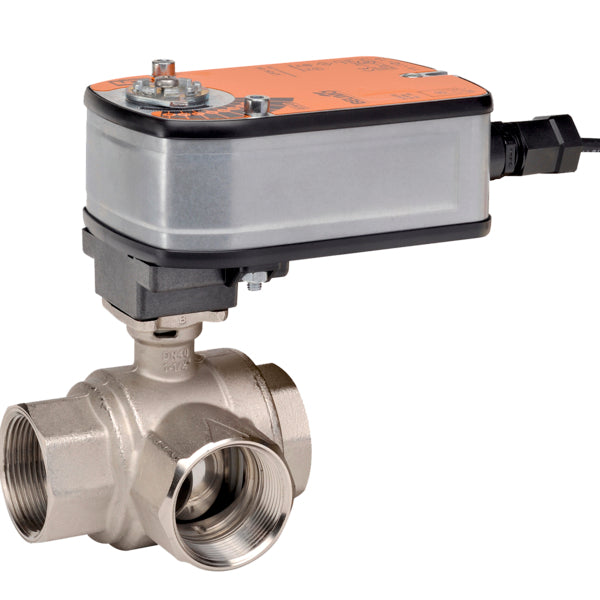

Belimo B315B+LF120 US CCV 1/2 inches 120V

Product Description

The BELIMO B315B+LF120 US is a Characterized Control Valve (CCV), DN 1/2" [15], 3-way, Cv 10 with a Valve Actuator, Spring return, AC 120 V, On/Off, 1x SPDT. Ideal for air handling units, fan coil units, and various HVAC applications, the Belimo CCV ensures efficient heating or cooling coil regulation.

• Equal percentage flow characteristic for precise control.
• Enhanced control stability with the characterizing disc.
• Comparable Cv values to globe valves of the same size.

Product Highlights

The Belimo CCV ensures efficient heating or cooling coil regulation. Its versatility extends to Unit Ventilators, VAV box re-heat coils, and bypass loops, making it a cornerstone of hydronic systems with variable flow requirements.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B315B+LF120 US

Technical Specifications

• Pattern: 3-way
• Cv: 10
• Fluid: Chilled or hot water, up to 60% glycol
• Body Pressure Rating: 600 psi
• Flow characteristic {Tools}: A AB: equal percentage; B AB: linear
• End Fitting: Internal thread
• Trim: Chrome plated brass
• Valve Size: 0.5" [15]
• Voltage AC/DC: AC 120 V
• Power Consumption (Holding): 3.5 W
• Power Consumption For Wire Sizing: 7.5 VA
• Auxiliary Switches: 1x SPDT
• Control Type: On/Off
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Power Consumption (Running): 5.5 W
• Torque: 35 in-lb [4 Nm]
• Direction Of Motion Motor: selectable with switch 0/1
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Angle of Rotation: 95
• Running Time (Motor): 75 s
• Running Time (Fail-safe): <25 s
• Ambient Temeprature: -22...122 F [-30...50 C]
• Valve Pattern: 3-Way
• CV Rating: 10
• GPM: 20 @ 4 psi
• Material: Chrome Plated Brass
• Actuator Type: Fail-Safe
• Voltage: 120V
• Control Signal: On/Off
• Auxillary Switch: None
• Enclosure: None
• Valve Piping: 3-Way
• Connection: NPT
• Nema Rating: Nema 2
• Fail-Safe: Spring Return
• Actuator: LF120 US
• Close-Off Rating: 100 PSI
• Runtime: 75 Secs
• Nickel Plated Stem: Nickel Plated Brass Body,Chrome-Plated Brass Ball,
• Valve Type: Regular
• Actuator type: Electric
• Application: Chilled, Hot Water, up to 60% Glycol
• Category: Electric Actuator Valve Assemblies
• Enclosure nema rating: NEMA 2
• Fail safe: Fail Safe
• Features and benefits: 35 in-lbs [4 Nm] minimum | <75 seconds | NPT female ends | Forged Brass, Nickel Plated
• Size: 1/2 Inch
• Series: Belimo
• Short desc: Characterized Control Valve, 1/2 Inch, 3-Way Mixing/Diverting, 10Cv, 120V, Fail-Safe
• Supplier part number: B315B+LF120 US
• Item Number: B315B+LF120 US
• Brand: Belimo
• Control Input: On/Off
• Control Valves Type: CCV
• Cv / GPM: 10 Cv
• Spring Return: Spring Return
• MPN: B315B+LF120 US
• Condition: New
