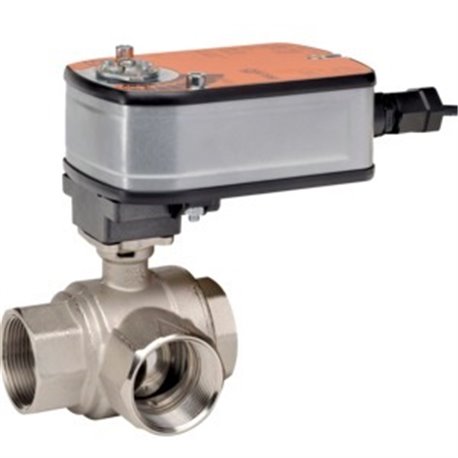

Belimo B315B+LF120-S | CCV | 0.5 | 3 Way | 10 Cv | w/ Spg Rtn | 120V | On/Off | SW

Product Description

The Belimo B315B+LF120-S is a three-way control valve designed for efficient flow management in HVAC systems. This model features a size of 0.5 inches and operates with a Cv of 10. It is suitable for chilled or hot water applications, with a maximum fluid mixture of sixty percent glycol. The valve utilizes a spring return actuator for reliable and quick operation.

• Chilled or hot water compatibility
• Spring return actuator design
• 3-way pattern for versatile applications

Product Highlights

The Belimo B315B+LF120-S offers effective control and flexibility in managing fluid flows, making it ideal for both residential and commercial HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B315B+LF120-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches (15)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC120V
