Belimo B315B+LF120 CCV 0.5 3 Way 10 Cv w/ Spg Rtn 120V On/Off

Product Description

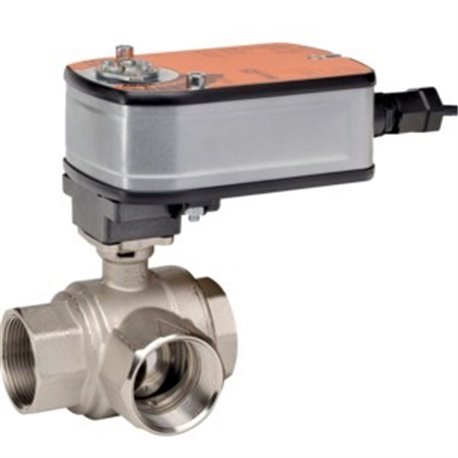

The Belimo B315B+LF120 is a three-way valve with a size of zero point five inches and a flow coefficient of ten. This valve operates at a voltage of one hundred twenty volts and utilizes a spring return actuator. It is suitable for both chilled and hot water applications, capable of handling fluids up to sixty percent glycol content.

• Three-way valve design
• Spring return actuator
• Compatible with various fluid types

Product Highlights

This valve offers reliable control of fluid flow in HVAC systems, making it a critical component in managing temperature and energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315B+LF120

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5 inches [15]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 120 V
