Belimo B315+LF24-S | CCV | 0.5 | 3 Way | 10 Cv | w/ Spg Rtn | 24V | On/Off | SW

Product Description

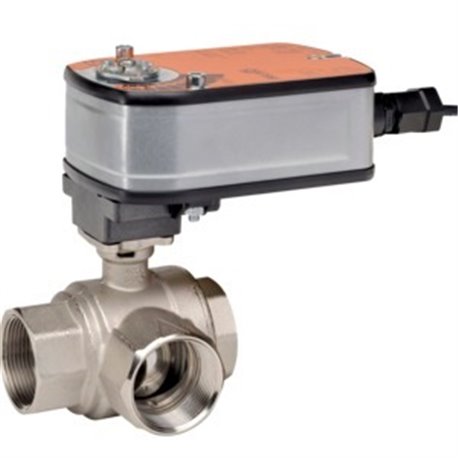

The Belimo B315+LF24-S is a three-way control valve designed for regulating the flow of chilled or hot water with a glycol ratio of up to sixty percent. This valve operates on twenty-four volts with spring return for reliable operation in various HVAC applications. It is suitable for integration in systems requiring precise flow control and offers robust performance in temperature regulation.

• Maximum flow capacity of ten Cv.
• Compliant with NEMA 2 IP54 for environmental protection.
• Supports auxiliary switch for enhanced functionality.

Product Highlights

This product is ideal for HVAC systems that require a reliable and efficient control solution in managing water flow through heating and cooling loops.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315+LF24-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 (15)
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
