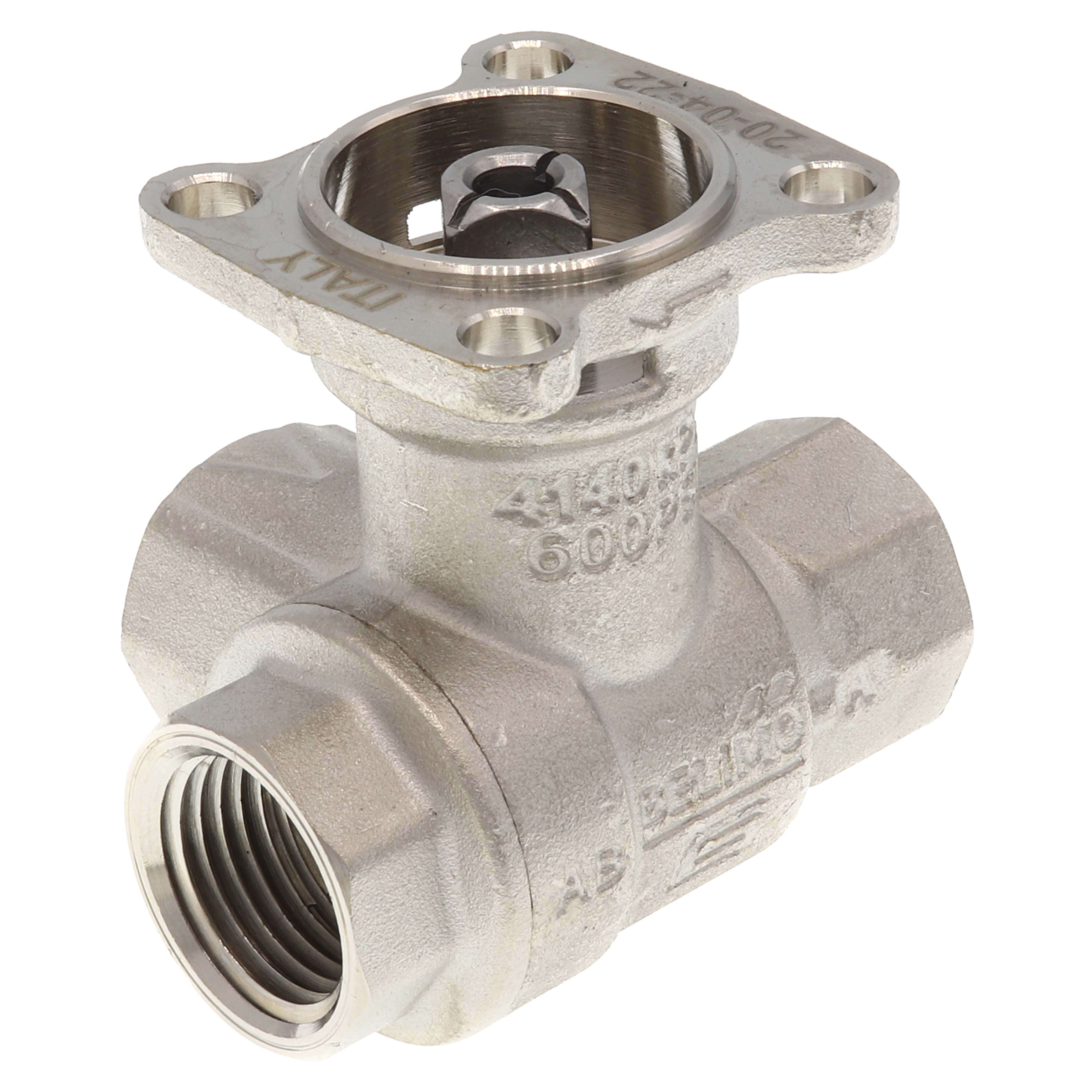

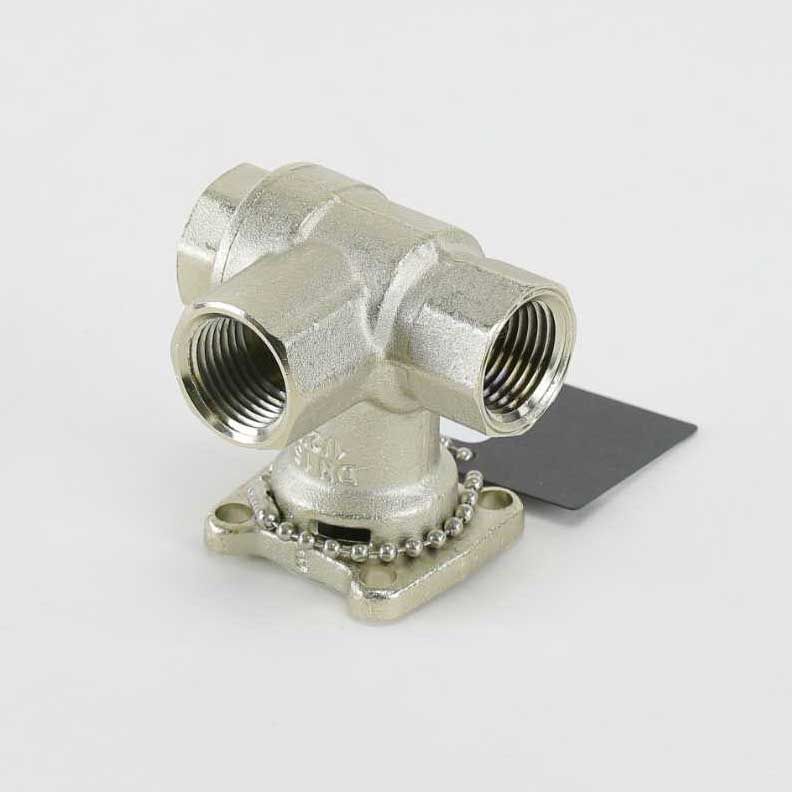

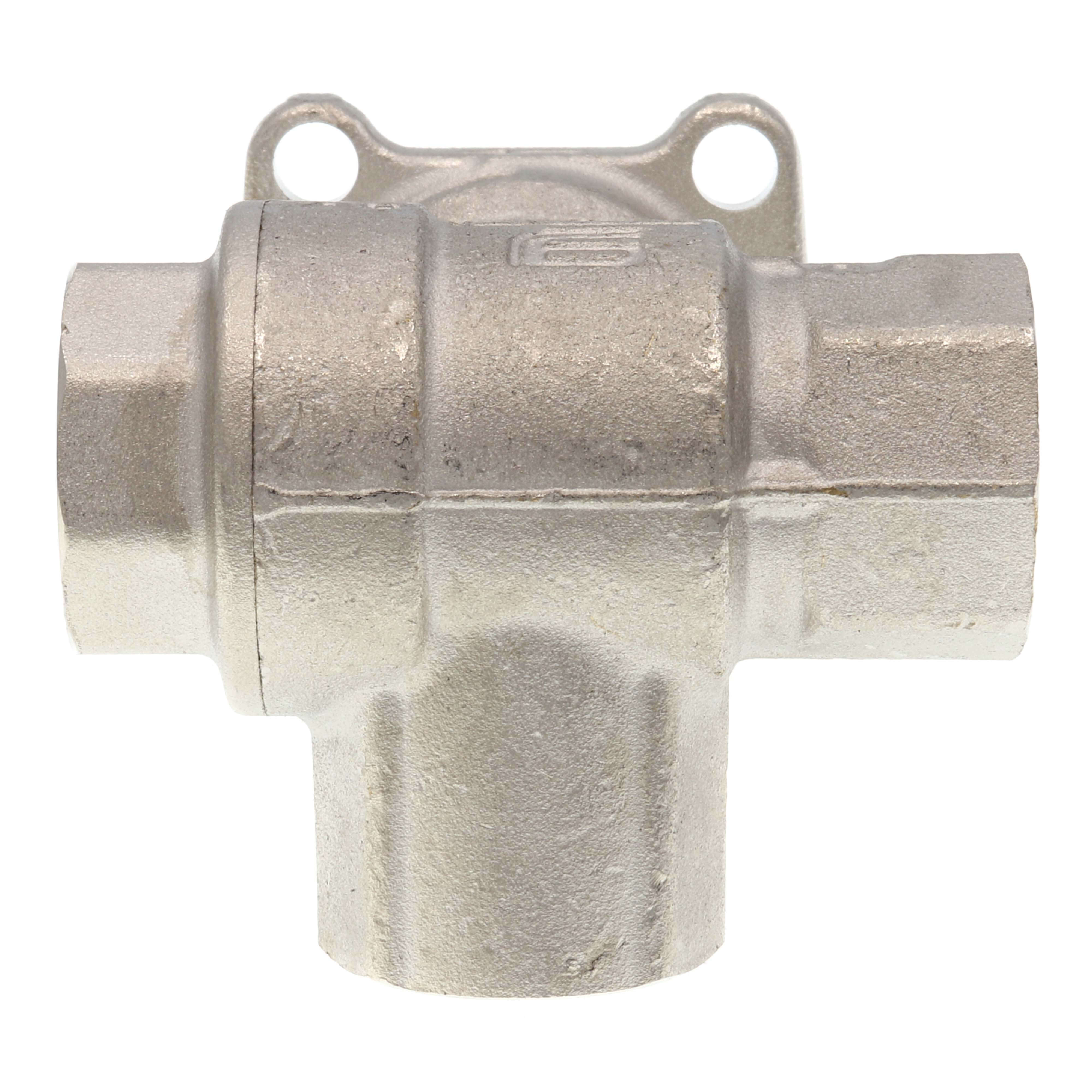

Belimo B315 Characterized Control Valve (CCV) 1/2 3-way

Product Description

The Belimo B315 is a three-way characterized control valve. It features a half-inch size and is designed to provide precise control of fluid flow. This valve is typically used in HVAC applications where stable temperature regulation is needed.

• Flow capacity of 10 Cv
• Constructed from stainless steel and forged brass
• Suitable for chilled or hot water systems with up to sixty percent glycol

Product Highlights

This control valve enhances system efficiency and stability. It has an equal percentage characteristic that allows for accurate flow control, making it ideal for a variety of hydronic applications. The B315 integrates easily into existing systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315

Technical Specifications

• Valve Size: 0.5 inches (15 mm)
• Flow Range: 75B0
• Pressure Independent: No
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Body Material: Forged brass with stainless steel trim
• End Fitting Type: Internal thread
• Close Off Pressure: 200 psi
• Body Pressure Rating: 600 psi
• Shipping Weight: 0.75 lbs
